PRPC001SBBN-M71RC

Active

Sullins Connector Solutions

CONN HEADER R/A 1POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

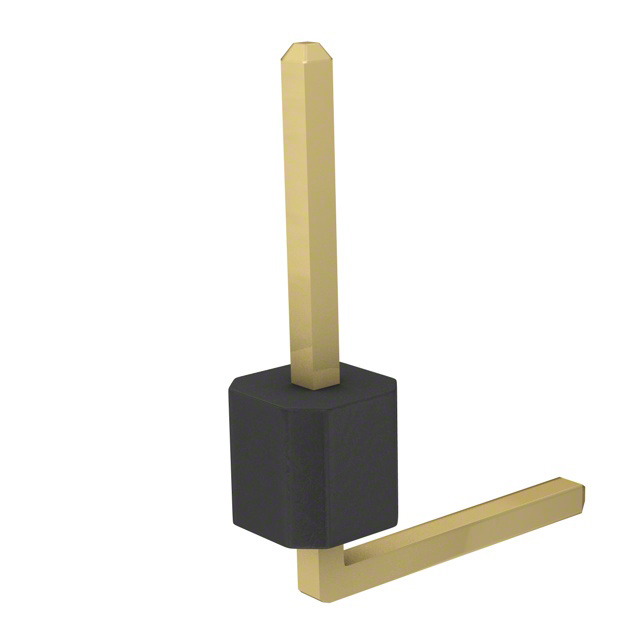

PRPC001SBBN-M71RC

Active

Sullins Connector Solutions

CONN HEADER R/A 1POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PRPC001SBBN-M71RC

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post	0.22 in
Contact Length - Post	5.58 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	1
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PRPC001 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Type	Contact Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating [x]	Contact Length - Mating	Contact Finish - Mating	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]	Shrouding	Number of Rows	Contact Finish Thickness - Post	Material Flammability Rating	Contact Finish Thickness - Mating	Style	Connector Type	Insulation Material	Current Rating (Amps)	Fastening Type	Contact Shape	Number of Positions Loaded	Termination	Contact Finish - Post	Insulation Color	Mounting Type	Overall Contact Length	Overall Contact Length	Contact Length - Mating [x]	Insulation Height [z]	Insulation Height [z]	Overall Contact Length	Contact Length - Post	Contact Length - Post
Sullins Connector Solutions PRPC001DBAN-M71RC	-40 °C	105 ░C	2	Male Pin	Brass	2.54 mm	0.1 in	0.23 in	5.84 mm	Gold	0.197 in	5 mm	0.12 in	3.05 mm	Unshrouded	2	Flash	UL94 V-0	Flash	Board to Board Cable	Breakaway Header	Polybutylene Terephthalate (PBT)	3 A	Push-Pull	Square	All	Solder	Gold	Black	Through Hole Right Angle
Sullins Connector Solutions PRPC001SFAN-RC	-40 °C	105 ░C	1	Male Pin	Brass			0.318 "		Gold			0.12 in	3.05 mm	Unshrouded	1	Flash	UL94 V-0	Flash	Board to Board Cable	Breakaway Header	Polybutylene Terephthalate (PBT)	3 A	Push-Pull	Square	All	Solder	Gold	Black	Through Hole	13.63 mm	0.537 "	8.08 mm	0.098 in	2.5 mm
Sullins Connector Solutions PRPC001SGAN-M71RC	-40 °C	105 ░C	1	Male Pin	Brass			0.318 "		Gold			0.12 in	3.05 mm	Unshrouded	1	Flash	UL94 V-0	Flash	Board to Board Cable	Breakaway Header	Polybutylene Terephthalate (PBT)	3 A	Push-Pull	Square	All	Solder	Gold	Black	Through Hole Right Angle			8.08 mm	0.098 in	2.5 mm
Sullins Connector Solutions PRPC001SBCN-M71RC	-40 °C	105 ░C	1	Male Pin	Brass			0.23 in	5.84 mm	Gold			0.32 in	8.13 mm	Unshrouded	1	Flash	UL94 V-0	Flash	Board to Board Cable	Breakaway Header	Polybutylene Terephthalate (PBT)	3 A	Push-Pull	Square	All	Solder	Gold	Black	Through Hole Right Angle				0.098 in	2.5 mm
Sullins Connector Solutions PRPC001DFBN-RC	-40 °C	105 ░C	2	Male Pin	Brass	2.54 mm	0.1 in	0.318 "		Gold					Unshrouded	2	Flash	UL94 V-0	Flash	Board to Board Cable	Breakaway Header	Polybutylene Terephthalate (PBT)	3 A	Push-Pull	Square	All	Solder	Gold	Black	Through Hole		16.17 mm	8.08 mm	0.098 in	2.5 mm	0.637 in	0.22 in	5.58 mm
Sullins Connector Solutions PRPC001SACN-RC	-40 °C	105 ░C	1	Male Pin	Brass			0.23 in	5.84 mm	Gold			0.32 in	8.13 mm	Unshrouded	1	Flash	UL94 V-0	Flash	Board to Board Cable	Breakaway Header	Polybutylene Terephthalate (PBT)	3 A	Push-Pull	Square	All	Solder	Gold	Black	Through Hole		16.47 mm		0.098 in	2.5 mm	0.648 in
Sullins Connector Solutions PRPC001SBBN-M71RC	-40 °C	105 ░C	1	Male Pin	Brass			0.23 in	5.84 mm	Gold					Unshrouded	1	Flash	UL94 V-0	Flash	Board to Board Cable	Breakaway Header	Polybutylene Terephthalate (PBT)	3 A	Push-Pull	Square	All	Solder	Gold	Black	Through Hole Right Angle				0.098 in	2.5 mm		0.22 in	5.58 mm
Sullins Connector Solutions PRPC001DAAN-RC	-40 °C	105 ░C	2	Male Pin	Brass	2.54 mm	0.1 in	0.23 in	5.84 mm	Gold			0.12 in	3.05 mm	Unshrouded	2	Flash	UL94 V-0	Flash	Board to Board Cable	Breakaway Header	Polybutylene Terephthalate (PBT)	3 A	Push-Pull	Square	All	Solder	Gold	Black	Through Hole		11.39 mm		0.098 in	2.5 mm	0.448 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.40
		10	$ 0.31
		100	$ 0.23
		500	$ 0.20
		1000	$ 0.18
		5000	$ 0.15
		10000	$ 0.14

Description

General part information

PRPC001 Series

Connector Header Through Hole, Right Angle 1 position

Documents

Technical documentation and resources
