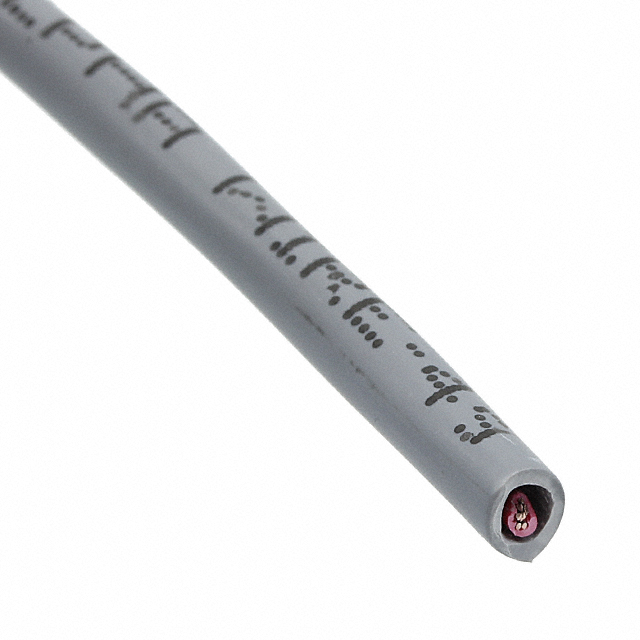

1172L SL005

Active

ALPHA WIRE

MULTI-CONDUCTOR CABLE LOW SMOKE ZERO HALOGEN 2CONDUCTORS 22AWG 4.06MM 300VAC SLATE 30.48M SPOOL

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTI-CONDUCTOR CABLE LOW SMOKE ZERO HALOGEN 2CONDUCTORS 22AWG 4.06MM 300VAC SLATE 30.48M SPOOL

Technical Specifications

Parameters and characteristics for this part

Specification	1172L SL005

Cable Type	Multi-Conductor
Conductor Insulation	Low Smoke Zero Halogen (LSZH)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	0.161 "
Jacket (Insulation) Diameter [diameter]	4.09 mm
Jacket (Insulation) Thickness	0.025 in
Jacket (Insulation) Thickness	0.635 mm
Jacket Color	Slate
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	2
Usage	Control, Communication
Voltage	300 V
Wire Gauge	22 AWG

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Cable Type	Length [x]	Length [x]	Usage	Conductor Material	Conductor Insulation	Jacket Color
ALPHA WIRE 1172L SL002	0.025 in	0.635 mm	22 AWG	7	30 AWG	300 V	0.161 "	4.09 mm	2	Multi-Conductor	500 '	152.4 m	Communication Control	Copper Tinned	Low Smoke Zero Halogen (LSZH)	Slate
ALPHA WIRE 1172L SL005	0.025 in	0.635 mm	22 AWG	7	30 AWG	300 V	0.161 "	4.09 mm	2	Multi-Conductor	100 ft	30.5 m	Communication Control	Copper Tinned	Low Smoke Zero Halogen (LSZH)	Slate

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Conductor Multi-Conductor Cable Slate 22 AWG 100.0' (30.5m)
