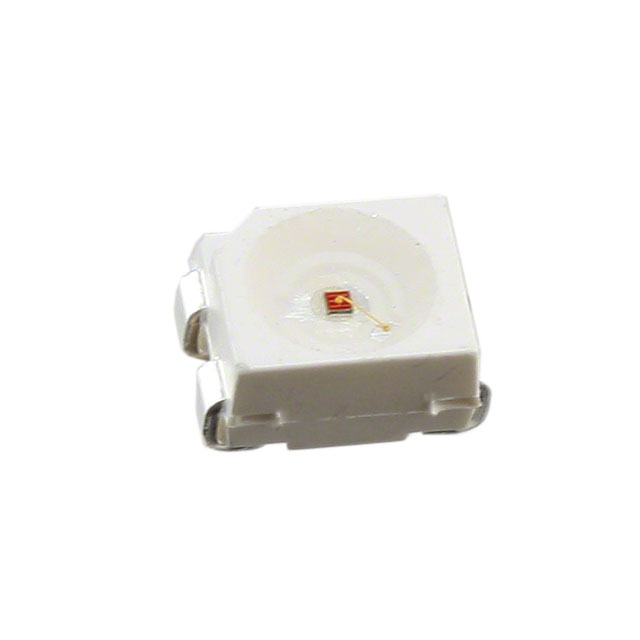

ASMT-QAB2-FDE0E

Obsolete

Broadcom Limited

LED AMBER 591NM 4PLCC

Search across all available documentation for this part.

Obsolete

Broadcom Limited

LED AMBER 591NM 4PLCC

Technical Specifications

Parameters and characteristics for this part

Specification	ASMT-QAB2-FDE0E

Color	Amber
Current - Max [Max]	150 mA
Current - Test	150 mA
Height - Seated (Max) [Max] [z]	2.1 mm
Height - Seated (Max) [Max] [z]	0.083 "
Lumens/Watt @ Current - Test	30 lm/W
Luminous Flux @ Current/Temperature	12 lm
Luminous Flux @ Current/Temperature [Max]	15 lm
Luminous Flux @ Current/Temperature [Min]	9 lm
Mounting Type	Surface Mount
Package / Case	4-PLCC
Size / Dimension [x]	3.2 mm
Size / Dimension [x]	0.126 in
Size / Dimension [y]	0.11 in
Size / Dimension [y]	2.8 mm
Supplier Device Package	4-PLCC
Thermal Resistance of Package [diameter]	60 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	2.7 V
Wavelength	591 nm
Wavelength [Max]	598 nm
Wavelength [Min]	583 nm

Part	Supplier Device Package	Viewing Angle	Color	Lumens/Watt @ Current - Test	Thermal Resistance of Package [diameter]	Current - Test	Package / Case	Voltage - Forward (Vf) (Typ)	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Wavelength [Min]	Wavelength	Wavelength [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Current - Max [Max]	Mounting Type
Broadcom Limited ASMT-QABD-AEFJE
Broadcom Limited ASMT-QABD-AEF0E	4-PLCC	120 °	Amber	46 lm/W	60 °C/W	150 mA	4-PLCC	2.3 V	16 lm	20 lm	12 lm	2.1 mm	0.083 "	583 nm	591 nm	598 nm	3.2 mm	0.126 in	0.11 in	2.8 mm	300 mA	Surface Mount
Broadcom Limited ASMT-QAB2-FDE0E	4-PLCC	120 °	Amber	30 lm/W	60 °C/W	150 mA	4-PLCC	2.7 V	12 lm	15 lm	9 lm	2.1 mm	0.083 "	583 nm	591 nm	598 nm	3.2 mm	0.126 in	0.11 in	2.8 mm	150 mA	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting Color - Amber 591nm (583nm ~ 598nm) 4-PLCC
