Technical Specifications
Parameters and characteristics for this part
| Specification | UC2-3NU |
|---|---|
| Approval Agency | CSA, TUV, UL |
| Coil Current | 46.7 mA |
| Coil Resistance | 64.3 Ohms |
| Coil Type | Non Latching |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Gold Alloy, Silver Alloy |
| Contact Rating (Current) | 1 A |
| Load - Max Switching | 220 W, 250 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 2.25 VDC |
| Must Release Voltage | 0.3 VDC |
| Operate Time | 2 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 1 ms |
| Switching Voltage | 250 VAC, 220 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information

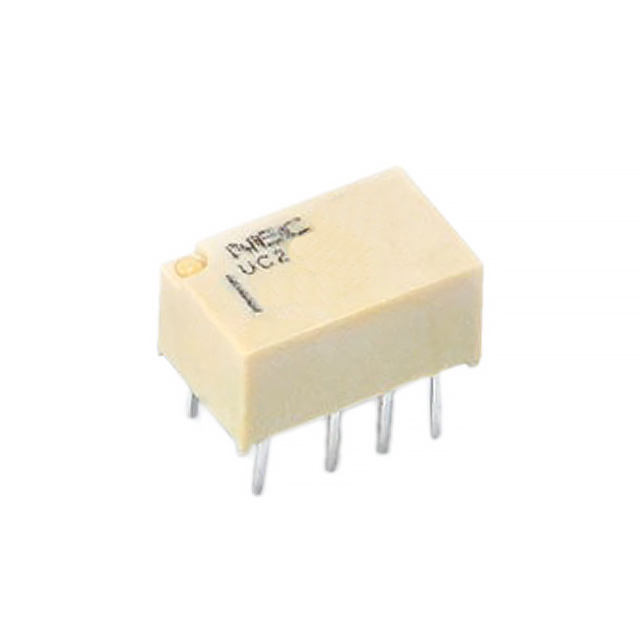

UC2-3N Series
General Purpose Relay DPDT (2 Form C) Through Hole
