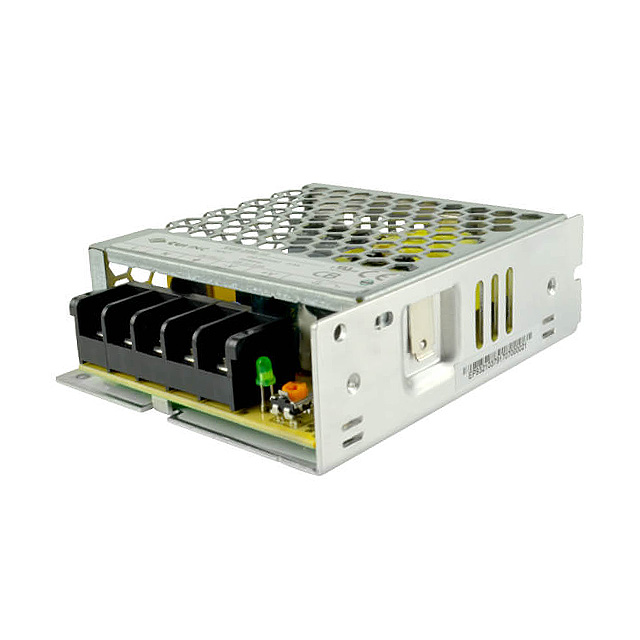

VGS-35B-12

Obsolete

CUI Inc.

AC/DC CONVERTER 12V 36W

Search across all available documentation for this part.

Obsolete

CUI Inc.

AC/DC CONVERTER 12V 36W

Technical Specifications

Parameters and characteristics for this part

Specification	VGS-35B-12

Applications	ITE (Commercial)
Approval Agency	SIQ, CB Scheme, EN, UL, TUV, IEC, FCC
Current - Output 1	3 A
Efficiency	85 %
Features	Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	36 W
Size / Dimension [x]	99 mm
Size / Dimension [x]	3.9 "
Size / Dimension [y]	82 mm
Size / Dimension [y]	3.23 "
Size / Dimension [z]	30 mm
Size / Dimension [z]	1.18 in
Standard Number	55024, 55032 Class B, 61000-3-3, 61000-3-2, 60950-1
Type	Enclosed
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	1.5 kV
Voltage - Output 1	12 V

Part	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Power (Watts)	Type	Voltage - Output 1	Mounting Type	Efficiency	Standard Number	Voltage - Isolation	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Number of Outputs	Current - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Features
CUI Inc. VGS-35B-12	82 mm	30 mm	99 mm	3.23 "	1.18 in	3.9 "	36 W	Enclosed	12 V	Chassis Mount	85 %	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	1.5 kV	90 VAC	264 VAC	ITE (Commercial)	1	3 A	-20 °C	70 °C	CB Scheme EN FCC IEC SIQ TUV UL	Adjustable Output Universal Input
CUI Inc. VGS-35B-24	82 mm	30 mm	99 mm	3.23 "	1.18 in	3.9 "	36 W	Enclosed	24 V	Chassis Mount	88 %	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	1.5 kV	90 VAC	264 VAC	ITE (Commercial)	1	1.5 A	-20 °C	70 °C	CB Scheme EN FCC IEC SIQ TUV UL	Adjustable Output Universal Input

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 11.72

General part information

Enclosed AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
