0005060304

Obsolete

Molex

CONN QC RCPT 14-22AWG 0.187

Search across all available documentation for this part.

Obsolete

Molex

CONN QC RCPT 14-22AWG 0.187

Technical Specifications

Parameters and characteristics for this part

Specification	0005060304

Contact Finish	Tin
Contact Material	Brass
Gender	Female
Insulation	Non-Insulated
Insulation Diameter [diameter]	0.031 in
Insulation Diameter [diameter]	0.79 mm
Length - Overall [x]	0.63 "
Length - Overall [x]	16 mm
Mounting Type	Free Hanging (In-Line)
Tab Length	0.275 in
Tab Length	6.99 mm
Tab Thickness	0.02 "
Tab Thickness	0.51 mm
Tab Width	4.75 mm
Tab Width	0.187 in
Terminal Type	Flat Blade
Termination	Crimp
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	14 AWG

Part	Length - Overall [x]	Length - Overall [x]	Gender	Contact Material	Tab Width	Tab Width	Terminal Type	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Mounting Type	Contact Finish	Insulation	Tab Length	Tab Length	Wire Gauge [Min]	Wire Gauge [Max]	Tab Thickness	Tab Thickness	Termination
Molex 0005060304	0.63 "	16 mm	Female	Brass	4.75 mm	0.187 in	Flat Blade	0.031 in	0.79 mm	Free Hanging (In-Line)	Tin	Non-Insulated	0.275 in	6.99 mm	14 AWG	22 AWG	0.02 "	0.51 mm	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

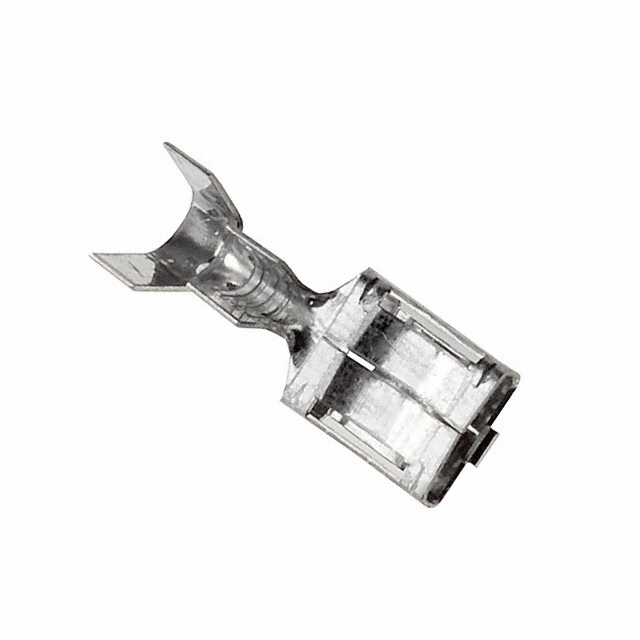

0.187" (4.75mm) Quick Connect Female 14-22 AWG Crimp Connector Non-Insulated
