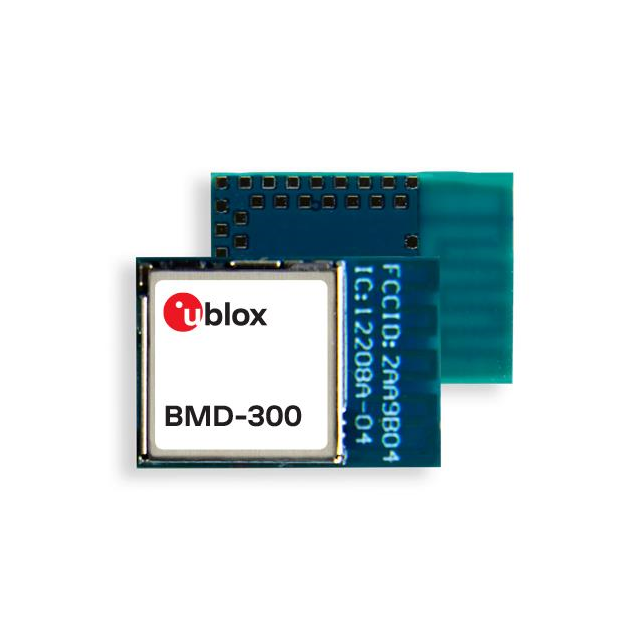

BMD-300-A-R
Activeu-blox
RF TXRX MOD BT TH SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BMD-300-A-R |
|---|---|
| Antenna Type | Integrated, Trace |
| Current - Receiving | 10.4 mA |
| Current - Transmitting | 17 mA |
| Data Rate | 2 Mbps |
| Frequency | 2.4 GHz |
| Modulation | GFSK |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Power - Output | 4 dBm |
| Protocol | Bluetooth v5.0 |
| RF Family/Standard | Bluetooth |
| Serial Interfaces | SPI, I2C, I2S, UART |
| Utilized IC / Part | nRF52832 |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 9.55 | |
| 10 | $ 8.59 | |||
| 50 | $ 7.73 | |||
| 100 | $ 7.41 | |||
| Digi-Reel® | 1 | $ 9.55 | ||
| 10 | $ 8.59 | |||
| 50 | $ 7.73 | |||
| 100 | $ 7.41 | |||
| Tape & Reel (TR) | 1000 | $ 6.96 | ||
Description
General part information
BMD-300 Series
Bluetooth Bluetooth v5.0 Transceiver Module 2.4GHz Integrated, Trace Surface Mount
