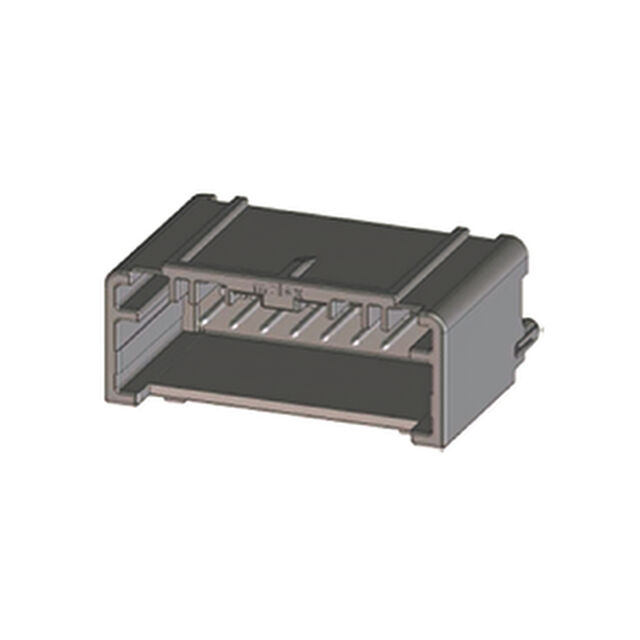

0347929080

Active

Molex

CONN HEADER VERT 8POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0347929080

Active

Molex

CONN HEADER VERT 8POS 2MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0347929080

Applications	Automotive
Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	5.55 mm
Contact Length - Mating	0.218 in
Contact Length - Post	0.113 in
Contact Length - Post	2.87 mm
Contact Material	Brass
Contact Shape	Rectangular
Contact Type	Male Blade
Fastening Type	Latch Lock
Features	Board Guide
Insulation Color	Black
Insulation Height	0.575 in
Insulation Height	14.6 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

034792 Series

Mini50 Unsealed Vertical Header, Single Row, 4 Circuit, Polarization Option A, Black, Tray

Part	Features	Connector Type	Style	Mounting Type	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Termination	Contact Material	Insulation Color	Shrouding	Number of Rows	Contact Shape	Applications	Pitch - Mating [x]	Pitch - Mating [x]	Contact Length - Post	Contact Length - Post	Number of Positions	Contact Type	Contact Finish - Post	Number of Positions Loaded	Fastening Type
Molex 0347920042	Board Guide	Header	Board to Cable/Wire	Through Hole	UL94 V-0	5.55 mm	0.218 in	0.575 in	14.6 mm	Solder	Brass	Brown	Shrouded - 4 Wall	1	Rectangular	Automotive	0.079 in	2 mm	0.051 in	1.3 mm	4	Male Blade	Tin	All	Latch Lock
Molex 0347920081	Board Guide	Header	Board to Cable/Wire	Through Hole	UL94 V-0	5.55 mm	0.218 in	0.575 in	14.6 mm	Solder	Brass	Gray	Shrouded - 4 Wall	1	Rectangular	Automotive	0.079 in	2 mm	0.051 in	1.3 mm	8	Male Blade	Tin	All	Latch Lock
Molex 0347928080	Board Guide	Header	Board to Cable/Wire	Through Hole	UL94 V-0	5.55 mm	0.218 in	0.575 in	14.6 mm	Solder	Brass	Black	Shrouded - 4 Wall	1	Rectangular	Automotive	0.079 in	2 mm	0.113 in	2.87 mm	8	Male Blade	Tin	All	Latch Lock
Molex 0347928081	Board Guide	Header	Board to Cable/Wire	Through Hole	UL94 V-0	5.55 mm	0.218 in	0.575 in	14.6 mm	Solder	Brass	Gray	Shrouded - 4 Wall	1	Rectangular	Automotive	0.079 in	2 mm	0.113 in	2.87 mm	8	Male Blade	Tin	All	Latch Lock
Molex 0347920040	Board Guide	Header	Board to Cable/Wire	Through Hole	UL94 V-0	5.55 mm	0.218 in	0.575 in	14.6 mm	Solder	Brass	Black	Shrouded - 4 Wall	1	Rectangular	Automotive	0.079 in	2 mm	0.051 in	1.3 mm	4	Male Blade	Tin	All	Latch Lock
Molex 0347929080	Board Guide	Header	Board to Cable/Wire	Through Hole	UL94 V-0	5.55 mm	0.218 in	0.575 in	14.6 mm	Solder	Brass	Black	Shrouded - 4 Wall	1	Rectangular	Automotive	0.079 in	2 mm	0.113 in	2.87 mm	8	Male Blade	Tin	All	Latch Lock
Molex 0347929081
Molex 0347928041	Board Guide	Header	Board to Cable/Wire	Through Hole	UL94 V-0	5.55 mm	0.218 in	0.575 in	14.6 mm	Solder	Brass	Gray	Shrouded - 4 Wall	1	Rectangular	Automotive	0.079 in	2 mm	0.113 in	2.87 mm	4	Male Blade	Tin	All	Latch Lock
Molex 0347920043	Board Guide	Header	Board to Cable/Wire	Through Hole	UL94 V-0	5.55 mm	0.218 in	0.575 in	14.6 mm	Solder	Brass	Green	Shrouded - 4 Wall	1	Rectangular	Automotive	0.079 in	2 mm	0.051 in	1.3 mm	4	Male Blade	Tin	All	Latch Lock
Molex 0347928082	Board Guide	Header	Board to Cable/Wire	Through Hole	UL94 V-0	5.55 mm	0.218 in	0.575 in	14.6 mm	Solder	Brass	Gray	Shrouded - 4 Wall	1	Rectangular	Automotive	0.079 in	2 mm	0.113 in	2.87 mm	8	Male Blade	Tin	All	Latch Lock

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	2040	$ 1.04

Description

General part information

034792 Series

Mini50 Unsealed Vertical Header, Single Row, 4 Circuit, Polarization Option A, Black, Tray
