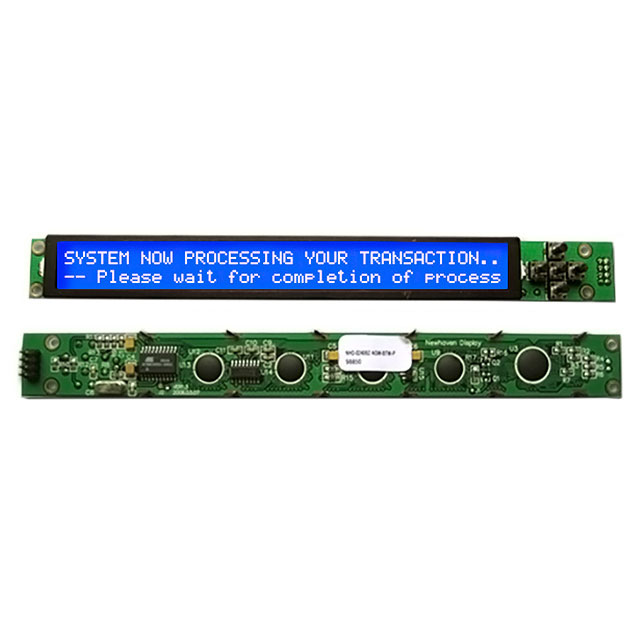

NHD-0240BZ-NSW-BTW-P

Obsolete

Newhaven Display Intl

LCD MOD 80DIG 40X2 TRANSMISV WHT

Search across all available documentation for this part.

Obsolete

Newhaven Display Intl

LCD MOD 80DIG 40X2 TRANSMISV WHT

Technical Specifications

Parameters and characteristics for this part

Part	Number of Characters	Viewing Area [y]	Viewing Area [x]	Voltage - Supply [Max]	Voltage - Supply [Min]	Character Size [z]	Character Size [y]	Character Format [y]	Character Format [x]	Display Mode	Interface	Display Type	Controller Type	Operating Temperature [Min]	Operating Temperature [Max]	Background Color	Outline L x W x H [y]	Outline L x W x H [x]	Outline L x W x H [z]	Display Format [y]	Display Format [x]	Dot Size [custom]	Dot Size [custom]	Text Color	Backlight	Voltage - Supply
Newhaven Display Intl NHD-0240AZ-FL-YBW	80	16.5 mm	152.5 mm	5.5 V	4.7 V	5.55 mm	3.2 mm	8 Dots	5 Dots	Transflective	Parallel	STN - Super-Twisted Nematic	SPLC780D ST7066U	-20 C	70 °C	Green	33.5 mm	182 mm	13.5 mm	2	40	0.65 mm	0.6 mm	Blue
Newhaven Display Intl NHD-0240BZ-NSW-BTW-P	80	16 mm	153.5 mm			5.55 mm	3.2 mm	8 Dots	5 Dots	Transmissive	RS-232	STN - Super-Twisted Nematic		-20 C	70 °C	Blue	22 mm	163 mm	13.4 mm	2	40	0.65 mm	0.6 mm	White	LED - White	12 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Character Display Module Transmissive 5 x 8 Dots STN - Super-Twisted Nematic LED - White RS-232 163.00mm x 22.00mm x 13.40mm
