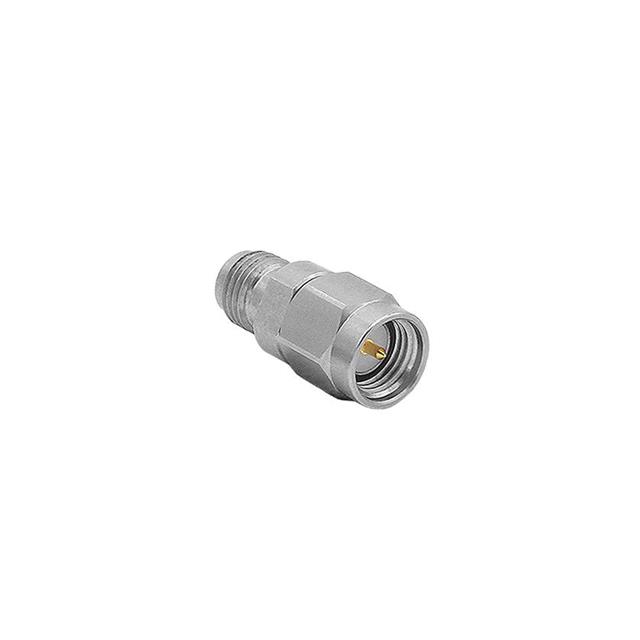

RFAASMAPSMAJ

Active

BULGIN LIMITED

RF / COAXIAL ADAPTER, SMA, PLUG, SMA, JACK, STRAIGHT ADAPTER, 50 OHM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

RFAASMAPSMAJ

Active

BULGIN LIMITED

RF / COAXIAL ADAPTER, SMA, PLUG, SMA, JACK, STRAIGHT ADAPTER, 50 OHM

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RFAASMAPSMAJ

Adapter Series	SMA to SMA
Adapter Type	Plug to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Conversion Type	Same Series
Convert From (Adapter End)	SMA Plug, Male Pin
Convert To (Adapter End)	SMA Jack, Female Socket
Dielectric Material	Polyetherimide (PEI), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	26.5 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

RFAASMA Series

Part	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Convert From (Adapter End)	Frequency - Max [Max]	Dielectric Material	Convert To (Adapter End)	Conversion Type	Style	Body Material	Mounting Type	Adapter Type	Mating Cycles	Center Gender	Adapter Series
BULGIN LIMITED RFAASMAPNJ	50 Ohms	-65 ░C	165 °C	Beryllium Copper	SMA Plug Male Pin	26.5 GHz	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Female Socket N Jack	Between Series	Straight	Stainless Steel	Free Hanging (In-Line)	Plug to Jack	500
BULGIN LIMITED RFAASMAPNP	50 Ohms	-65 ░C	165 °C	Beryllium Copper	SMA Plug Male Pin	26.5 GHz	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Male Pin N Plug	Between Series	Straight	Stainless Steel	Free Hanging (In-Line)	Plug to Plug	500	Male to Male
BULGIN LIMITED RFAASMAPSMAP	50 Ohms	-65 ░C	165 °C	Beryllium Copper	SMA Plug Male Pin	26.5 GHz	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Male Pin SMA Plug	Same Series	Straight	Stainless Steel	Free Hanging (In-Line)	Plug to Plug	500	Male to Male	SMA to SMA
BULGIN LIMITED RFAASMAPSMAJ	50 Ohms	-65 ░C	165 °C	Beryllium Copper	SMA Plug Male Pin	26.5 GHz	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Female Socket SMA Jack	Same Series	Straight	Stainless Steel	Free Hanging (In-Line)	Plug to Jack	500		SMA to SMA
BULGIN LIMITED RFAASMAJNP	50 Ohms	-65 ░C	165 °C	Beryllium Copper	Female Socket SMA Jack	26.5 GHz	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Male Pin N Plug	Between Series	Straight	Stainless Steel	Free Hanging (In-Line)	Plug to Jack	500
BULGIN LIMITED RFAASMAJNJ	50 Ohms	-65 ░C	165 °C	Beryllium Copper	Female Socket SMA Jack	26.5 GHz	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Female Socket N Jack	Between Series	Straight	Stainless Steel	Free Hanging (In-Line)	Jack to Jack	500	Female to Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 66.69
Newark	Each	1	$ 96.25

Description

General part information

RFAASMA Series

Adapter Coaxial Connector SMA Plug, Male Pin To SMA Jack, Female Socket 50 Ohms
