HM2R01PA5108L9LF

Active

Amphenol ICC (FCI)

CONN HARD METRIC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHM2S81PE8100N9LF gs-20-022 Other Related Document +2

HM2R01PA5108L9LF

Active

Amphenol ICC (FCI)

CONN HARD METRIC

Deep-Dive with AI

DocumentsHM2S81PE8100N9LF gs-20-022 Other Related Document +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HM2R01PA5108L9LF

Connector Style	A 22
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Current Rating (Amps)	1.5 A
Features	Board Guide, Upper Shield
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	110 positions
Number of Positions Loaded	All
Number of Rows	5
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Press-Fit
Voltage Rating	750 Vrms

HM2R01 Series

Part	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Number of Rows	Connector Style	Voltage Rating	Pitch [x]	Pitch [x]	Termination	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Connector Usage	Current Rating (Amps)	Number of Positions Loaded	Mounting Type	Number of Positions	Number of Positions Loaded
Amphenol ICC (FCI) HM2R01PACA39N9	Receptacle Female Sockets	-55 °C	125 °C	Board Guide Upper Shield	5	A 22	500 V	0.079 in	2 mm	Press-Fit	Gold	0.76 Ám	30 Áin	CompactPCI J4	1.5 A	90	Board Edge Right Angle Through Hole	110 positions
Amphenol ICC (FCI) HM2R01PA5108Z1LF	Receptacle Female Sockets	-55 °C	125 °C	Board Guide Upper Shield	5	A 22	750 Vrms	0.079 in	2 mm	Press-Fit	Gold				1.5 A		Board Edge Right Angle Through Hole	110 positions	All
Amphenol ICC (FCI) HM2R01PA5104N9LF	Receptacle Female Sockets	-55 °C	125 °C	Board Guide Lower Shield Upper Shield	5	A 22	750 Vrms	0.079 in	2 mm	Press-Fit	Gold	0.76 Ám	30 Áin		1.5 A		Board Edge Right Angle Through Hole	110 positions	All
Amphenol ICC (FCI) HM2R01PACA39N9LF	Receptacle Female Sockets	-55 °C	125 °C	Board Guide Upper Shield	5	A 22	750 Vrms	0.079 in	2 mm	Press-Fit	Gold	0.76 Ám	30 Áin		1.5 A	90	Board Edge Right Angle Through Hole	110 positions
Amphenol ICC (FCI) HM2R01PA5100AALF
Amphenol ICC (FCI) HM2R01PA5100E9LF	Receptacle Female Sockets	-55 °C	125 °C	Board Guide	5	A 22	500 VAC	0.079 in	2 mm	Press-Fit	Gold				1.5 A		Board Edge Right Angle Through Hole	110 positions	All
Amphenol ICC (FCI) HM2R01PA5100N9JLF	Receptacle Female Sockets	-55 °C	125 °C	Board Guide	5	A 22	750 Vrms	0.079 in	2 mm	Press-Fit	Gold	0.76 Ám	30 Áin		1.5 A		Board Edge Right Angle Through Hole	110 positions	All
Amphenol ICC (FCI) HM2R01PA5100L9LF	Receptacle Female Sockets	-55 °C	125 °C	Board Guide	5	A 22	750 Vrms	0.079 in	2 mm	Press-Fit	Gold	1.3 Ám	51.2 Áin		1.5 A		Board Edge Right Angle Through Hole	110 positions	All
Amphenol ICC (FCI) HM2R01PA510FN9LF	Receptacle Female Sockets	-55 °C	125 °C	Board Guide Upper Shield	5	A 22	750 Vrms	0.079 in	2 mm	Press-Fit	Gold	0.76 Ám	30 Áin		1.5 A		Board Edge Right Angle Through Hole	110 positions	All
Amphenol ICC (FCI) HM2R01PA5108L9LF	Receptacle Female Sockets	-55 °C	125 °C	Board Guide Upper Shield	5	A 22	750 Vrms	0.079 in	2 mm	Press-Fit	Gold				1.5 A		Board Edge Right Angle Through Hole	110 positions	All

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

HM2R01 Series

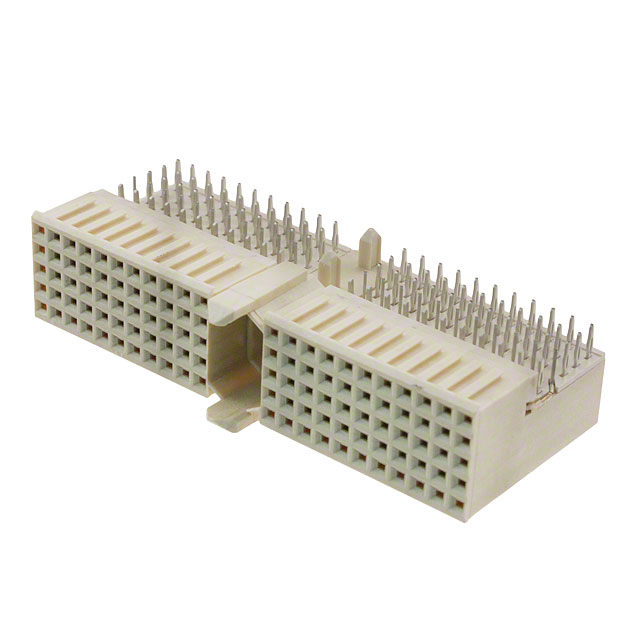

110 Position Receptacle, Female Sockets Connector 0.079" (2.00mm) Board Edge, Through Hole, Right Angle

HM2R01PA5108L9LF

Deep-Dive with AI

HM2R01PA5108L9LF

Deep-Dive with AI

Technical Specifications

HM2R01 Series

Pricing

Description

HM2R01 Series

Documents

HM2S81PE8100N9LF

gs-20-022 Other Related Document

Datasheet

millipacs2mm hm productpresentation Other Related Document

HM2R01 Series
