R0.5D12-2412/HP

Active

RECOM Power

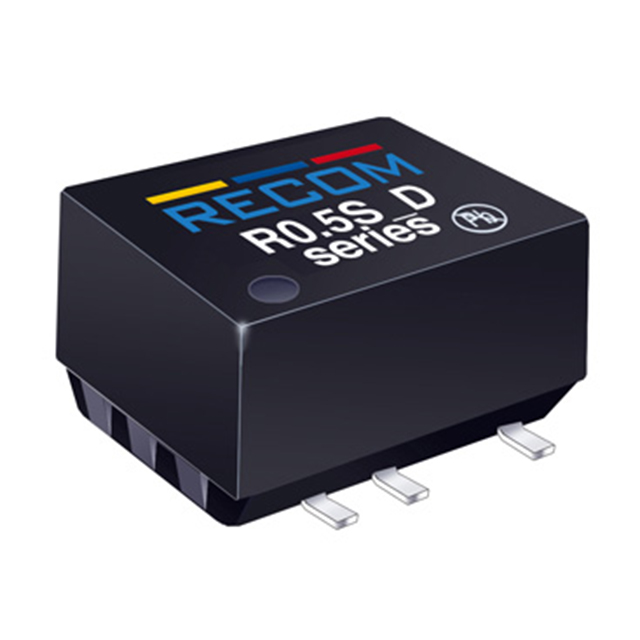

ISOLATED DC/DC CONVERTERS - SMD 0.5W 24V +/-12V SMD 3KV UNREG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

R0.5D12-2412/HP

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - SMD 0.5W 24V +/-12V SMD 3KV UNREG

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R0.5D12-2412/HP

Applications	ITE (Commercial)
Current - Output (Max) [Max]	21 mA
Current - Output (Max) [Min]	21 mA
Efficiency	75 %
Features	SCP
Mounting Type	Surface Mount
Number of Outputs	2
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	10 Leads
Package / Case	12-SMD Module
Power (Watts)	0.5 W
Size / Dimension [x]	15.2 mm
Size / Dimension [x]	0.6 in
Size / Dimension [y]	10.7 mm
Size / Dimension [y]	0.42 "
Size / Dimension [z]	0.28 "
Size / Dimension [z]	7 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	26.4 V
Voltage - Input (Min) [Min]	21.6 V
Voltage - Isolation	3000 V
Voltage - Output 1	12 V
Voltage - Output 2	-12 V

R0.5D12-3.305 Series

Isolated DC/DC Converters - SMD 0.5W 24V +/-05V SMD 3kV unreg

...

Part	Voltage - Output 2	Power (Watts)	Number of Outputs	Voltage - Output 1	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Current - Output (Max)	Voltage - Input (Min) [Min]	Applications	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Mounting Type	Voltage - Isolation	Features	Efficiency	Package / Case	Current - Output (Max)	Current - Output (Max) [Max]	Current - Output (Max) [Min]
RECOM Power R0.5D-0515/HP	-15 V	0.5 W	2	15 V	5.5 V	100 °C	-40 °C	Isolated Module	17 mA	4.5 V	ITE (Commercial)	10.7 mm	0.28 "	15.2 mm	7 mm	0.6 in	0.42 "	10-SMD Module 6 Leads	Surface Mount	3000 V	SCP	79 %
RECOM Power R0.5D12-1215/H-R	-15 V	0.5 W	2	15 V	13.2 V	100 °C	-40 °C	Isolated Module	17 mA	10.8 V	ITE (Commercial)	10.7 mm	0.28 "	15.2 mm	7 mm	0.6 in	0.42 "	12-SMD Module	Surface Mount	3000 V	SCP	75 %	10 Leads
RECOM Power R0.5D12-0505	-5 V	0.5 W	2	5 V	5.5 V	100 °C	-40 °C	Isolated Module	50 mA	4.5 V	ITE (Commercial)	10.7 mm	0.28 "	15.2 mm	7 mm	0.6 in	0.42 "	12-SMD Module	Surface Mount	1000 V	SCP	79 %	10 Leads	50 mA
RECOM Power R0.5D-1212/P	-12 V	0.5 W	2	12 V	13.2 V	100 °C	-40 °C	Isolated Module		10.8 V	ITE (Commercial)	10.7 mm	0.28 "	15.2 mm	7 mm	0.6 in	0.42 "	10-SMD Module 6 Leads	Surface Mount	1000 V	SCP	75 %			21 mA	21 mA
RECOM Power R0.5D12-0515	-15 V	0.5 W	2	15 V	5.5 V	100 °C	-40 °C	Isolated Module	17 mA	4.5 V	ITE (Commercial)	10.7 mm	0.28 "	15.2 mm	7 mm	0.6 in	0.42 "	12-SMD Module	Surface Mount	1000 V	SCP	79 %	10 Leads
RECOM Power R0.5D12-2412/HP	-12 V	0.5 W	2	12 V	26.4 V	100 °C	-40 °C	Isolated Module		21.6 V	ITE (Commercial)	10.7 mm	0.28 "	15.2 mm	7 mm	0.6 in	0.42 "	12-SMD Module	Surface Mount	3000 V	SCP	75 %	10 Leads		21 mA	21 mA
RECOM Power R0.5D-1212	-12 V	0.5 W	2	12 V	13.2 V	100 °C	-40 °C	Isolated Module		10.8 V	ITE (Commercial)	10.7 mm	0.28 "	15.2 mm	7 mm	0.6 in	0.42 "	10-SMD Module 6 Leads	Surface Mount	1000 V	SCP	75 %			21 mA	21 mA
RECOM Power R0.5D10-1212/P	-12 V	0.5 W	2	12 V	13.2 V	100 °C	-40 °C	Isolated Module		10.8 V	ITE (Commercial)	10.7 mm	0.28 "	15.2 mm	7 mm	0.6 in	0.42 "	10-SMD Module	Surface Mount	1000 V	SCP	75 %			21 mA	21 mA
RECOM Power R0.5D12-2412/P	-12 V	0.5 W	2	12 V	26.4 V	100 °C	-40 °C	Isolated Module		21.6 V	ITE (Commercial)	10.7 mm	0.28 "	15.2 mm	7 mm	0.6 in	0.42 "	12-SMD Module	Surface Mount	1000 V	SCP	75 %	10 Leads		21 mA	21 mA
RECOM Power R0.5D10-2405	-5 V	0.5 W	2	5 V	26.4 V	100 °C	-40 °C	Isolated Module	50 mA	21.6 V	ITE (Commercial)	10.7 mm	0.28 "	15.2 mm	7 mm	0.6 in	0.42 "	10-SMD Module	Surface Mount	1000 V	SCP	77 %		50 mA
