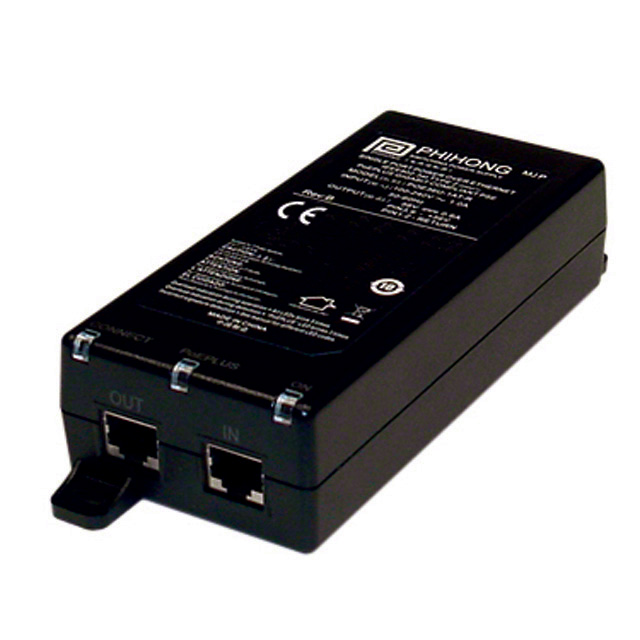

POE36D-1AT

Obsolete

Phihong USA

POE INJECTOR 33.6W 56V DESKTOP

Search across all available documentation for this part.

Obsolete

Phihong USA

POE INJECTOR 33.6W 56V DESKTOP

Technical Specifications

Parameters and characteristics for this part

Specification	POE36D-1AT

Approval Agency	CE
Compliance	IEEE802.3at
Current - Output	600 mA
Data Rate	10 Mbps, 1000 Mbps, 100 Mbps
Efficiency	80 %
Features	SCP, OCP, OVP
Input Connector	RJ45 (Data), Terminal Block (Power)
Mounting Type	Desktop
Note	AC Power Cord Sold Separately
Number of Ports	1
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-20 C
Output Connector	RJ45 (Data, Power)
Power (Watts) - Per Port	33.6 W
Size / Dimension [x]	5.51 "
Size / Dimension [x]	140 mm
Size / Dimension [y]	65 mm
Size / Dimension [y]	2.55 "
Size / Dimension [z]	1.42 in
Size / Dimension [z]	36 mm
Type	Midspan Injector
Voltage - Input [Max]	72 V
Voltage - Input [Min]	36 V
Voltage - Output	56 V
Weight	200.03 g
Weight	0.441 lb

Part	Current - Output	Approval Agency	Output Connector	Note	Features	Data Rate	Input Connector	Efficiency	Power (Watts) - Per Port	Mounting Type	Number of Ports	Voltage - Input [Min]	Voltage - Input [Max]	Type	Voltage - Output	Weight	Weight	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Compliance	Operating Temperature [Max]	Operating Temperature [Min]
Phihong USA POE36D-1AT	600 mA	CE	RJ45 (Data Power)	AC Power Cord Sold Separately	OCP OVP SCP	10 Mbps 100 Mbps 1000 Mbps	RJ45 (Data) Terminal Block (Power)	80 %	33.6 W	Desktop	1	36 V	72 V	Midspan Injector	56 V	200.03 g	0.441 lb	5.51 "	65 mm	1.42 in	2.55 "	140 mm	36 mm	IEEE802.3at	50 °C	-20 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

56V Power Over Ethernet (POE) 1 Port Midspan Injector 10/100/1000 Mbps Data Rate
