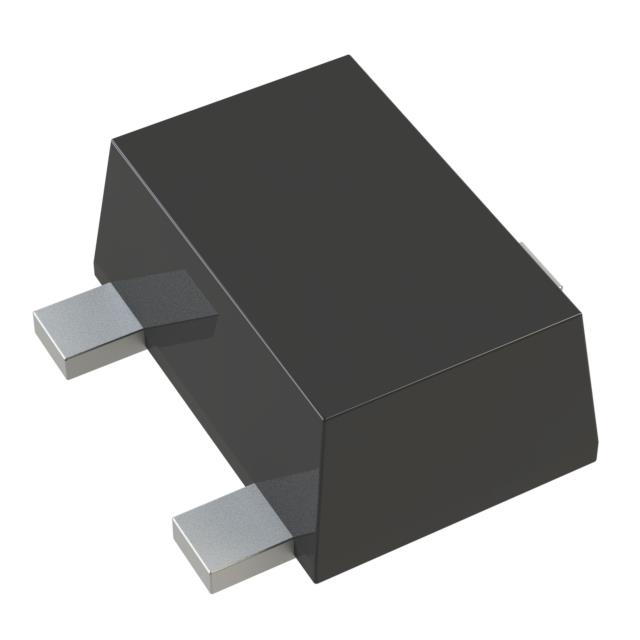

2SK3020-TP

Active

Micro Commercial Components

SMALL SIGNAL FIELD-EFFECT TRANSISTOR, 0.5A I(D), 30V,

Search across all available documentation for this part.

Active

Micro Commercial Components

SMALL SIGNAL FIELD-EFFECT TRANSISTOR, 0.5A I(D), 30V,

Technical Specifications

Parameters and characteristics for this part

Specification	2SK3020-TP

Current - Continuous Drain (Id) @ 25°C	500 mA
Drain to Source Voltage (Vdss)	30 V
Drive Voltage (Max Rds On, Min Rds On)	10 V, 4.5 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	1.28 nC
Input Capacitance (Ciss) (Max) @ Vds	29 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	SOT-723
Power Dissipation (Max) [Max]	200 mW
Rds On (Max) @ Id, Vgs	750 mOhm
Supplier Device Package	SOT-723
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	1.5 V

Part	FET Type	Gate Charge (Qg) (Max) @ Vgs	Current - Continuous Drain (Id) @ 25°C	Vgs(th) (Max) @ Id	Power Dissipation (Max) [Max]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Rds On (Max) @ Id, Vgs	Supplier Device Package	Technology	Vgs (Max)	Package / Case	Input Capacitance (Ciss) (Max) @ Vds	Drain to Source Voltage (Vdss)	Drive Voltage (Max Rds On, Min Rds On)
Micro Commercial Components 2SK3020-TP	N-Channel	1.28 nC	500 mA	1.5 V	200 mW	Surface Mount	-55 °C	150 °C	750 mOhm	SOT-723	MOSFET (Metal Oxide)	20 V	SOT-723	29 pF	30 V	4.5 V 10 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N-Channel 30 V 500mA 200mW Surface Mount SOT-723
