Technical Specifications
Parameters and characteristics for this part
| Specification | VNB35NV04TR-E |
|---|---|
| Current - Output (Max) [Max] | 30 A |
| Fault Protection | Over Temperature, Current Limiting (Fixed), Over Voltage |
| Input Type | Non-Inverting |
| Interface | On/Off |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Low Side |
| Output Type | N-Channel |

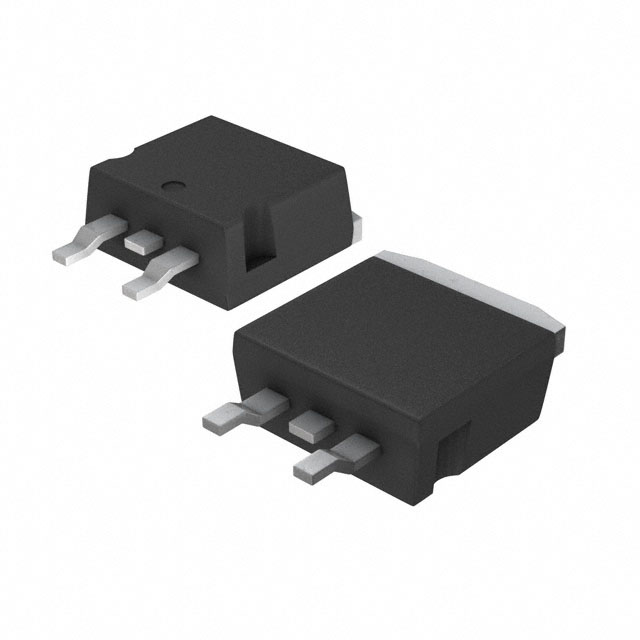

| Package / Case | D2PAK (2 Leads + Tab), TO-263AB, TO-263-3 |
| Ratio - Input:Output [custom] | 1:1 |
| Rds On (Typ) | 13 mOhm |
| Supplier Device Package | D2PAK |
| Switch Type | General Purpose |
| Voltage - Load | 36 V |
| Voltage - Supply (Vcc/Vdd) | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
VNB35NV04-E Series
The VNB35NV04-E, VNP35NV04-E and VNV35NV04-E are monolithic devices designed in STMicroelectronics®VIPower®M0-3 Technology, intended for replacement of standard Power MOSFETs from DC up to 25 kHz applications.
Built-in thermal shutdown, linear current limitation and overvoltage clamp protect the chip in harsh environments. Fault feedback can be detected by monitoring the voltage at the input pin.
