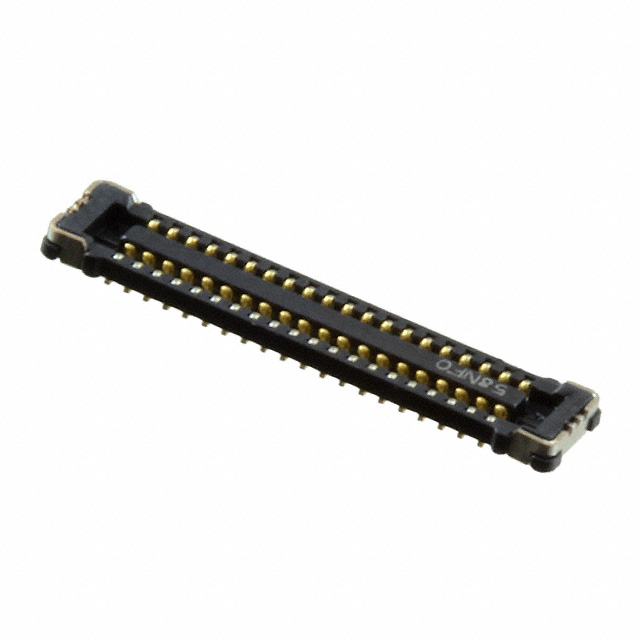

WP21-S040VA1-R8000
ObsoleteJAE Electronics
CONN RCPT 40POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WP21-S040VA1-R8000
ObsoleteJAE Electronics
CONN RCPT 40POS SMD GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WP21-S040VA1-R8000 |
|---|---|
| Connector Type | Receptacle, Center Strip Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 4 Áin |
| Contact Finish Thickness | 0.1 Ám |
| Features | Solder Retention |
| Height Above Board | 0.023 in |
| Height Above Board | 0.59 mm |
| Mated Stacking Heights | 0.6 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Pitch [x] | 0.35 mm |
| Pitch [x] | 0.014 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.15 | |
| 10 | $ 0.98 | |||
| 25 | $ 0.92 | |||
| 50 | $ 0.87 | |||
| 100 | $ 0.85 | |||
Description
General part information
WP21-S04 Series
40 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
