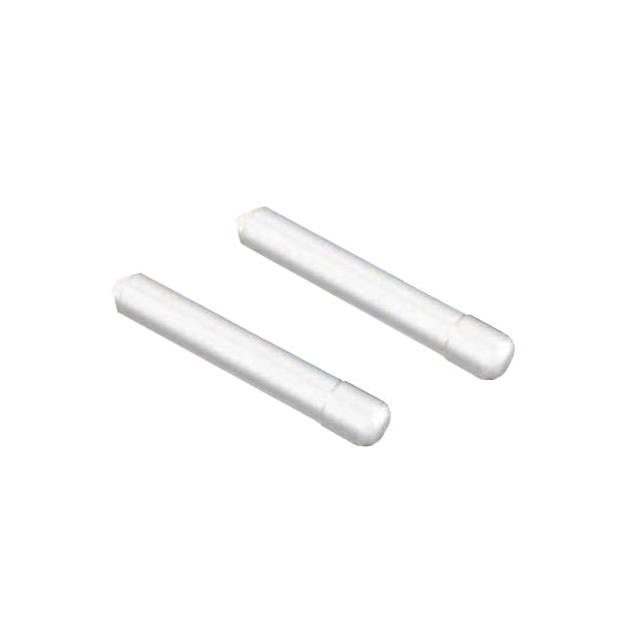

IT-PA-2P-14H(11)
ActiveHirose Electric USA, Inc.
CONN INTERPOSER WITHOUT HSG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IT-PA-2P-14H(11)
ActiveHirose Electric USA, Inc.
CONN INTERPOSER WITHOUT HSG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IT-PA-2P-14H(11) |
|---|---|
| Connector Type | Interposer |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Finish Thickness - Post | 30 µin |
| Contact Finish Thickness - Post | 0.76 µm |
| Contact Material | Copper Alloy |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 60 A |
| Insulation Color | Red |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Stacking |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Overall Contact Length | 0.709 in |
| Overall Contact Length | 18 mm |
| Pitch - Mating | 10.8 mm |
| Pitch - Mating | 0.425 in |
| Termination | Solder |
| Voltage Rating | 300 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 13.40 | |
| 10 | $ 11.88 | |||
| 25 | $ 11.42 | |||
| 40 | $ 10.96 | |||
| 100 | $ 10.35 | |||
| 300 | $ 9.44 | |||
| 500 | $ 8.83 | |||
| 1000 | $ 8.10 | |||
Description
General part information
IT-PA-2P Series
Connector Header Stacking 2 position 0.425" (10.80mm)
