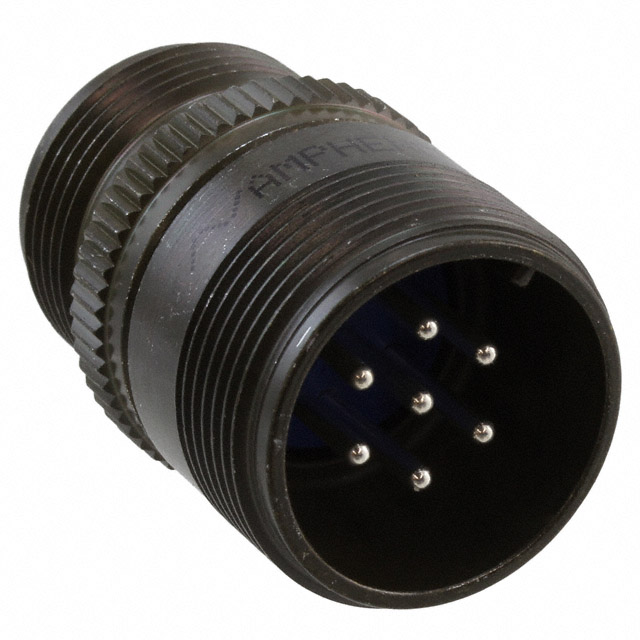

97-3101A-16S-1P

Active

Amphenol Industrial Operations

CONN RCPT MALE 7P SILV SLDR CUP

Search across all available documentation for this part.

Active

Amphenol Industrial Operations

CONN RCPT MALE 7P SILV SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	97-3101A-16S-1P

Applications	Industrial, Automotive
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Features	Backshell
Insert Material	Diallyl Phthalate (DAP)
Mounting Type	Free Hanging (In-Line)
Number of Positions	7
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	16S-1
Shielding	Unshielded

Part	Applications	Shell Finish	Number of Positions	Contact Material	Shell Size - Insert	Contact Finish - Mating	Color	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Features	Mounting Type	Connector Type	Shell Material	Insert Material	Primary Material
Amphenol Industrial Operations 97-3101A-16S-1S	Automotive Industrial	Olive Drab Chromate over Cadmium	7	Copper Alloy	16S-1	Silver	Olive Drab	Unshielded	-55 °C	125 °C	N	Backshell	Free Hanging (In-Line)	Receptacle Female Sockets	Aluminum Alloy	Diallyl Phthalate (DAP)	Metal
Amphenol Industrial Operations 97-3101A-16-10P	Automotive Industrial	Olive Drab Chromate over Cadmium		Copper Alloy	16-10	Silver	Olive Drab	Unshielded	-55 °C	125 °C	N	Backshell	Free Hanging (In-Line)	Male Pins Receptacle	Aluminum Alloy	Diallyl Phthalate (DAP)	Metal
Amphenol Industrial Operations 97-3101A-16S-1P	Automotive Industrial	Olive Drab Chromate over Cadmium	7	Copper Alloy	16S-1	Silver	Olive Drab	Unshielded	-55 °C	125 °C	N	Backshell	Free Hanging (In-Line)	Male Pins Receptacle	Aluminum Alloy	Diallyl Phthalate (DAP)	Metal
Amphenol Industrial Operations 97-3101A-16S-4S	Automotive Industrial	Olive Drab Chromate over Cadmium	2	Copper Alloy	16S-4	Silver	Olive Drab	Unshielded	-55 °C	125 °C	N	Backshell	Free Hanging (In-Line)	Receptacle Female Sockets	Aluminum Alloy	Diallyl Phthalate (DAP)	Metal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Receptacle, Male Pins Solder Cup
