Q22F5ARXXSR28AE
ActiveAPEM

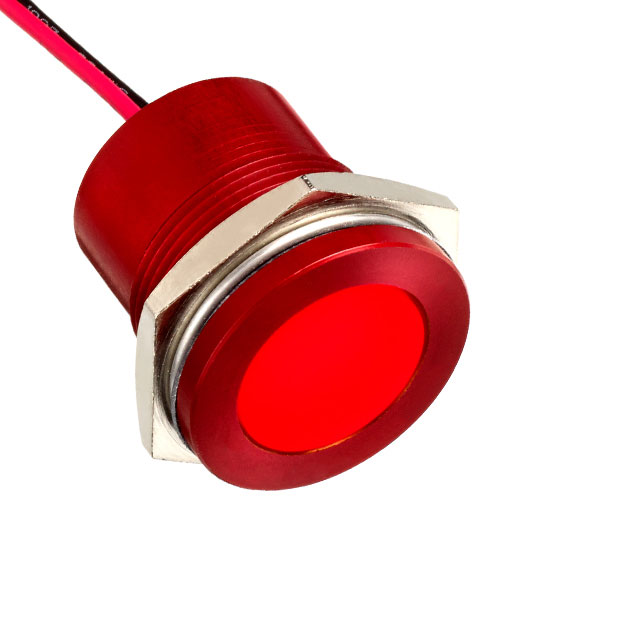

INDICATOR 28V 22MM FLUSH RED
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Q22F5ARXXSR28AE
ActiveAPEM
INDICATOR 28V 22MM FLUSH RED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | Q22F5ARXXSR28AE |
|---|---|
| Current | 40 mA |
| Ingress Protection | IP67 |
| Lamp Color | Red |
| Lens Color | Red |
| Lens Size [diameter] | 18 mm |
| Lens Transparency | Diffused |
| Millicandela Rating | 8000 mcd |
| Panel Cutout Dimensions | 22.1 mm |
| Panel Cutout Dimensions | 0.87 in |
| Panel Cutout Shape | Round |
| Ratings | AC/DC |
| Termination Style | Wire Leads - 7.87" (200.00mm) |
| Type | LED |
| Voltage | 28 V |
Q22F5ARXXSR Series
| Part | Panel Cutout Shape | Lens Color | Lamp Color | Termination Style | Panel Cutout Dimensions | Panel Cutout Dimensions | Lens Transparency | Type | Voltage | Current | Ratings | Millicandela Rating | Ingress Protection | Lens Size [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
APEM | Round | Red | Red | Wire Leads - 7.87" (200.00mm) | 22.1 mm | 0.87 in | Diffused | LED | 220 V | 3 mA | AC | 8000 mcd | IP67 | 18 mm |
APEM | Round | Red | Red | Wire Leads - 7.87" (200.00mm) | 22.1 mm | 0.87 in | Diffused | LED | 28 V | 40 mA | AC/DC | 8000 mcd | IP67 | 18 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 79.08 | |
| 25 | $ 63.23 | |||
| 100 | $ 59.39 | |||
Description
General part information
Q22F5ARXXSR Series
LED Panel Indicator Red Diffused 28V 40mA Wire Leads - 7.87" (200.00mm)
