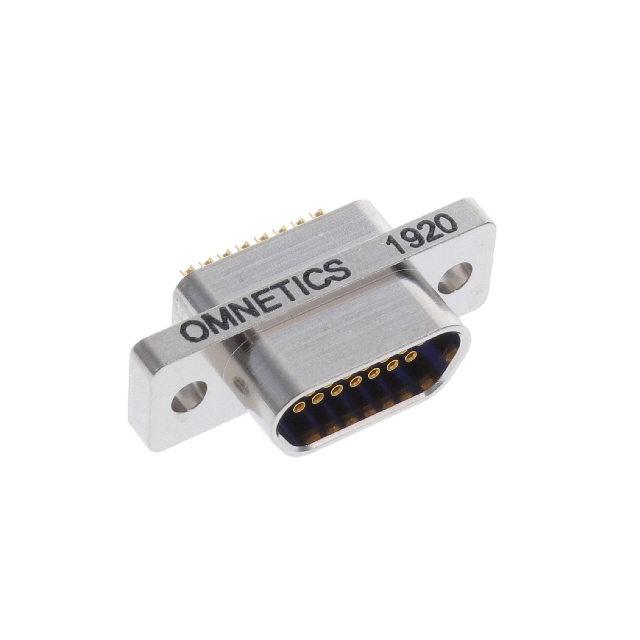

A99000-015

Active

Omnetics

CONN MICRO-D RCPT 15POS SLDR CUP

Search across all available documentation for this part.

Active

Omnetics

CONN MICRO-D RCPT 15POS SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	A99000-015

Connector Style	Micro-D, D-Type
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Form	Stamped
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic
Flange Feature	Housing/Shell (Unthreaded)
Mounting Type	Free Hanging (In-Line)
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Aluminum, Nickel Plated, Electroless
Shell Size, Connector Layout [custom]	0.05
Shell Size, Connector Layout [custom]	0.05

Part	Contact Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Flange Feature	Contact Material	Number of Positions	Mounting Type	Connector Style	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Connector Type	Contact Form	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Dielectric Material	Shell Material, Finish
Omnetics A99000-015	Signal	0.05	0.05	Housing/Shell (Unthreaded)	Copper Alloy	15	Free Hanging (In-Line)	D-Type Micro-D	50 µin	1.27 µm	2	Receptacle Female Sockets	Stamped	3 A	-55 °C	125 °C	Gold	Thermoplastic	Aluminum Electroless Nickel Plated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 Position D-Type, Micro-D Receptacle, Female Sockets Connector
