09300100902

Active

HARTING Technology Group

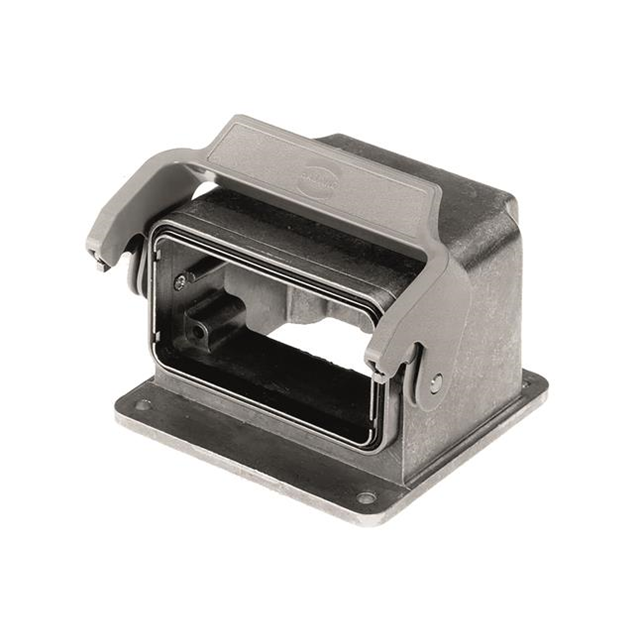

HEAVY DUTY CONNECTOR, BASE, PANEL MOUNT, ALUMINUM BODY, 1 LEVER, 10B

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

09300100902

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, BASE, PANEL MOUNT, ALUMINUM BODY, 1 LEVER, 10B

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09300100902

Connector Type	Base - Panel Mount 90°
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10B
Style	Side Entry

09300100 Series

Part	Housing Material	Housing Finish	Connector Type	Ingress Protection	Style	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Lock Location	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size	Thread Size	Size / Dimension [z]	Size / Dimension [y]	Features	Size / Dimension [x]	Size / Dimension [z]
HARTING Technology Group 09300100381	Aluminum Die Cast	Powder Coated	Base - Panel Mount	IP65 - Dust Tight Water Resistant	Bottom Entry	Gray	125 °C	-40 °C	Locking Clip (1) on Hood
HARTING Technology Group 09300100297	Aluminum Die Cast	Powder Coated	Base - Box Mount	IP65 - Dust Tight Water Resistant	Side Entry	Gray	125 °C	-40 °C	Locking Clip (1) on Base Bottom	94 mm	3.701 "	80.8 mm	57 mm	2.244 "	3.181 "	10B	PG21
HARTING Technology Group 09300100442	Aluminum Die Cast	Powder Coated	Hood	IP65 - Dust Tight Water Resistant	Top Entry	Gray	125 °C	-40 °C	Locking Clip (1) on Base Bottom	72.6 mm	2.858 "			1.693 in	3.425 in	10B	PG21	87 mm	43 mm
HARTING Technology Group 09300100392	Aluminum Die Cast	Powder Coated	Base - Panel Mount	IP66	Bottom Entry	Gray	125 °C	-40 °C	Locking Clip (2) on Base Bottom	98.6 mm	3.882 in	34.4 mm	55 mm	2.165 in	1.354 in	10B
HARTING Technology Group 09300100318	Aluminum Die Cast	Powder Coated	Base - Panel Mount	IP65 - Dust Tight Water Resistant	Bottom Entry	Gray	125 °C	-40 °C	Locking Clip (1) on Base Bottom	93 mm	3.661 inches	28.9 mm	43.4 mm	1.709 in	1.138 "	10B				Cover
HARTING Technology Group 09300100262	Aluminum Die Cast	Powder Coated	Base - Box Mount	IP65 - Dust Tight Water Resistant	Side Entry	Gray	125 °C	-40 °C	Locking Clip (2) on Hood	94 mm	3.701 "	80.8 mm	57 mm	2.244 "	3.181 "	10B	PG21
HARTING Technology Group 09300100902	Aluminum Die Cast	Powder Coated	Base - Panel Mount 90°	IP65 - Dust Tight Water Resistant	Side Entry	Gray	125 °C	-40 °C	Locking Clip (1) on Base Bottom							10B
HARTING Technology Group 09300100293	Aluminum Die Cast	Powder Coated	Base - Box Mount	IP65 - Dust Tight Water Resistant	Side Entry	Gray	125 °C	-40 °C	Locking Clip (1) on Base Bottom	94 mm	3.701 "	80.8 mm	57 mm	2.244 "	3.181 "	10B	PG29			Feed Through
HARTING Technology Group 09300100581	Aluminum Die Cast	Powder Coated	Hood	IP65 - Dust Tight Water Resistant	Side Entry	Gray	125 °C	-40 °C	Locking Clip (1) on Hood	2.858 in		2.835 in	1.693 in			10B	PG16		43 mm		72.6 mm	72 mm
HARTING Technology Group 09300100510			Hood		Side Entry				Locking Clip (2) on Base Bottom	2.858 in		2.835 in	1.693 in			10B	PG29		43 mm		72.6 mm	72 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 76.84
		10	$ 65.32
		25	$ 61.23
		50	$ 58.31
		100	$ 55.53
Newark	Each	1	$ 79.99
		5	$ 76.70
		10	$ 73.41
		25	$ 70.59
		50	$ 68.22
TME	N/A	1	$ 61.41
		3	$ 54.95
		5	$ 48.49

Description

General part information

09300100 Series

Base - Panel Mount 90° Connector Side Entry 10B IP65 - Dust Tight, Water Resistant
