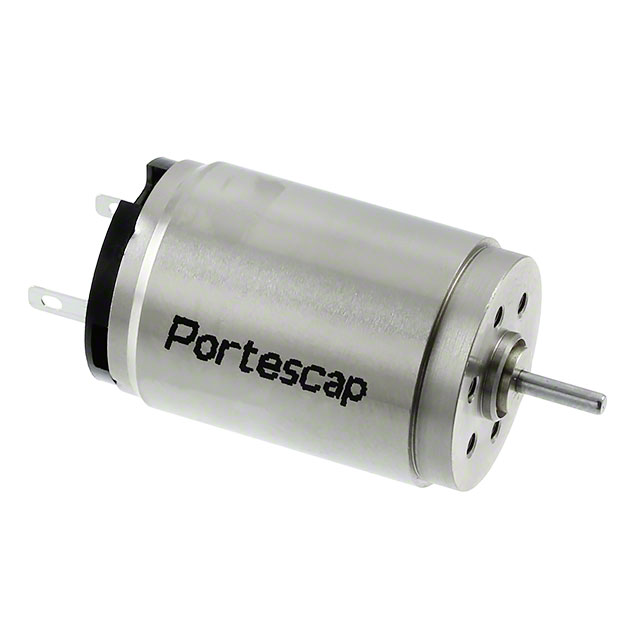

17N78213E1
ActivePortescap
STANDARD MOTOR 10000 RPM 7.5V
Deep-Dive with AI
Search across all available documentation for this part.
17N78213E1
ActivePortescap
STANDARD MOTOR 10000 RPM 7.5V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 17N78213E1 |
|---|---|
| Diameter - Shaft [diameter] | 0.059 in |
| Diameter - Shaft [diameter] | 1.5 mm |
| Function | Standard |
| Length - Shaft and Bearing | 7.5 mm |
| Length - Shaft and Bearing [x] | 0.295 in |
| Motor Type | Brushed |
| Mounting Hole Spacing | 10 mm |
| Mounting Hole Spacing | 0.394 in |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Power - Rated | 3.2 W |
| RPM | 10000 RPM |
| Size / Dimension [diameter] | 0.669 in |
| Size / Dimension [diameter] | 17 mm |
| Termination Style | Solder Tab |
| Torque - Rated (oz-in / mNm) | 0.754 oz-in |
| Torque - Rated (oz-in / mNm) | 5.33 mNm |
| Type | DC Motor |
| Voltage - Rated | 7.5 VDC |
| Weight | 0.06 lb |
| Weight | 27.22 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 140.28 | |
| 5 | $ 128.92 | |||
Description
General part information
17N78213 Series
Brushed DC Motor Standard 10000 RPM 3.2W 7.5VDC
Documents
Technical documentation and resources
No documents available
