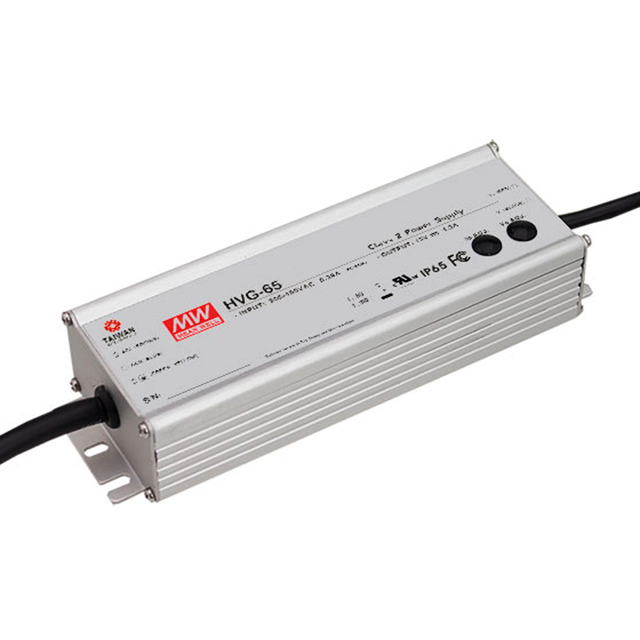

HVG-65-48B

Active

MEAN WELL USA Inc.

LED DVR CCCV ACDC 28.8-48V 1.36A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HVG-65-48B

Active

MEAN WELL USA Inc.

LED DVR CCCV ACDC 28.8-48V 1.36A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HVG-65-48B

Current - Output (Max) [Max]	1.36 A
Dimming	Analog, PWM
Efficiency	90 %
Features	OTP, SCP, OVP, OCP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Power (Watts)	65 W
Ratings	IP67
Size / Dimension [x]	165 mm
Size / Dimension [x]	6.5 in
Size / Dimension [y]	61.5 mm
Size / Dimension [y]	2.42 in
Size / Dimension [z]	36.8 mm
Size / Dimension [z]	1.45 in
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current, Voltage
Voltage - Input (Max)	528 VAC
Voltage - Input (Min) [Min]	180 VAC
Voltage - Isolation	3750 V
Voltage - Output [Max]	48 V
Voltage - Output [Min]	28.8 V

HVG-65 Series

Part	Termination Style	Efficiency	Mounting Type	Dimming	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Topology	Voltage - Isolation	Number of Outputs	Ratings	Voltage - Input (Max)	Power (Watts)	Features	Operating Temperature [Min]	Operating Temperature [Max]	Type	Voltage - Output [Max]	Voltage - Output [Min]
MEAN WELL USA Inc. HVG-65-15B	Wire Leads	87.5 %	Chassis Mount	Analog PWM	180 VAC	4.3 A	36.8 mm	61.5 mm	165 mm	6.5 in	2.42 in	1.45 in	AC DC Converter	3750 V	1	IP67	528 VAC	65 W	OCP OTP OVP SCP	-40 °C	80 C	Constant Current Voltage
MEAN WELL USA Inc. HVG-65-30B	Wire Leads	89 %	Chassis Mount	Analog PWM	180 VAC	2.17 A	36.8 mm	61.5 mm	165 mm	6.5 in	2.42 in	1.45 in	AC DC Converter	3750 V	1	IP67	528 VAC	65 W	OCP OTP OVP SCP	-40 °C	80 C	Constant Current Voltage
MEAN WELL USA Inc. HVG-65-42A	Wire Leads		Chassis Mount		180 VAC	1.55 A	36.8 mm	61.5 mm	165 mm	6.5 in	2.42 in	1.45 in	AC DC Converter	3750 V	1	IP65	528 VAC	65 W	OCP OTP OVP SCP	-40 °C	80 C	Constant Current Voltage	46 V	38 V
MEAN WELL USA Inc. HVG-65-48B	Wire Leads	90 %	Chassis Mount	Analog PWM	180 VAC	1.36 A	36.8 mm	61.5 mm	165 mm	6.5 in	2.42 in	1.45 in	AC DC Converter	3750 V	1	IP67	528 VAC	65 W	OCP OTP OVP SCP	-40 °C	80 C	Constant Current Voltage	48 V	28.8 V
MEAN WELL USA Inc. HVG-65-36A	Wire Leads		Chassis Mount		180 VAC	1.81 A	36.8 mm	61.5 mm	165 mm	6.5 in	2.42 in	1.45 in	AC DC Converter	3750 V	1	IP65	528 VAC	65 W	OCP OTP OVP SCP	-40 °C	80 C	Constant Current Voltage	40 V	33 V
MEAN WELL USA Inc. HVG-65-42B	Wire Leads		Chassis Mount	Analog PWM	180 VAC	1.55 A	36.8 mm	61.5 mm	165 mm	6.5 in	2.42 in	1.45 in	AC DC Converter	3750 V	1	IP67	528 VAC	65 W	OCP OTP OVP SCP	-40 °C	80 C	Constant Current Voltage	42 V	25.2 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 71.89
		5	$ 65.73
		10	$ 63.24
		25	$ 60.09

Description

General part information

HVG-65 Series

1.36A 28.8 ~ 48V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
