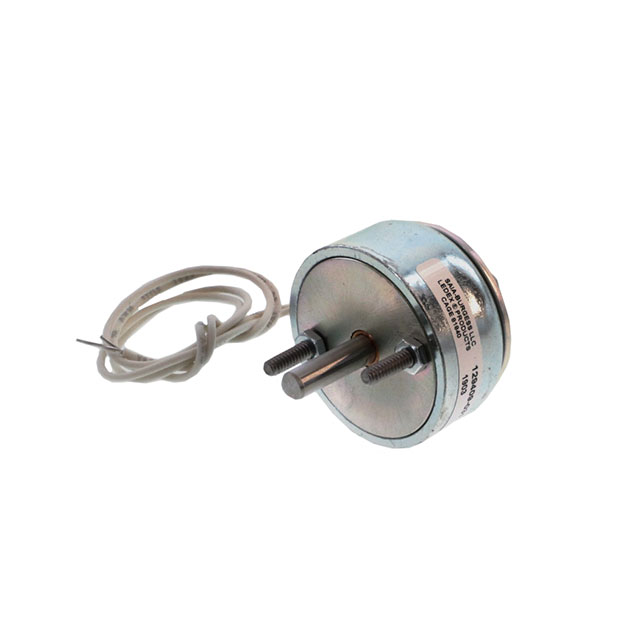

129409-031
ActiveLedex Dormeyer Saia, a Division of Johnson Electric
LOW PROFILE SOLENOID - 4EC 24 VD
Deep-Dive with AI
Search across all available documentation for this part.
129409-031
ActiveLedex Dormeyer Saia, a Division of Johnson Electric
LOW PROFILE SOLENOID - 4EC 24 VD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 129409-031 |
|---|---|
| DC Resistance (DCR) | 56.7 Ohm |
| Diameter - Shaft [diameter] | 5.54 mm |
| Diameter - Shaft [diameter] | 0.218 in |
| Duty Cycle | Continuous |
| Mounting Type | Chassis Mount |
| Power (Watts) | 12.5 W |
| Shaft Detail | Round |
| Size / Dimension [diameter] | 39.68 mm |
| Size / Dimension [diameter] | 1.562 " |
| Size / Dimension [x] | 0.835 in |
| Size / Dimension [x] | 21.21 mm |
| Stroke Length | 6.35 mm |
| Stroke Length | 0.25 in |
| Technology | Electromechanical |
| Termination Style | Wire Leads |
| Type | Closed Frame (Pull), Tubular |
| Voltage - Rated | 27 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 250 | $ 56.56 | |
Description
General part information
129409 Series
Continuous Duty Solenoid Closed Frame (Pull), Tubular Type 0.250" (6.35mm) Stroke 27VDC Chassis Mount
