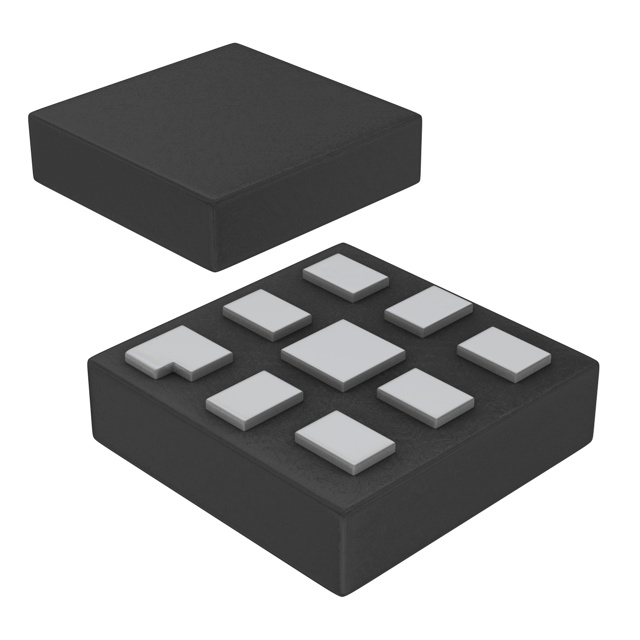

74AUP1G74GM,125

Active

Freescale Semiconductor - NXP

IC D-TYPE POS TRG SNGL 8XQFN

Search across all available documentation for this part.

Active

Freescale Semiconductor - NXP

IC D-TYPE POS TRG SNGL 8XQFN

Technical Specifications

Parameters and characteristics for this part

Specification	74AUP1G74GM,125

Clock Frequency	315 MHz
Current - Output High, Low [custom]	4 mA
Current - Output High, Low [custom]	4 mA
Function	Reset, Set(Preset)
Input Capacitance	0.6 pF
Max Propagation Delay @ V, Max CL	5.8 ns
Mounting Type	Surface Mount
Number of Bits per Element	1
Number of Elements	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output Type	Complementary
Package / Case	8-XFQFN Exposed Pad
Supplier Device Package	8-XQFN (1.6x1.6)
Trigger Type	Positive Edge
Type	D-Type
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	0.8 V

Part	Package / Case	Supplier Device Package	Clock Frequency	Function	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Max Propagation Delay @ V, Max CL	Output Type	Input Capacitance	Number of Elements	Trigger Type	Number of Bits per Element	Type	Mounting Type	Current - Output High, Low [custom]	Current - Output High, Low [custom]
Freescale Semiconductor - NXP 74AUP1G74GN,115	8-XFDFN	8-XSON (1.2x1)	315 MHz	Reset Set(Preset)	0.8 V	3.6 V	-40 °C	125 °C	5.8 ns	Complementary	0.6 pF	1	Positive Edge	1	D-Type	Surface Mount	4 mA	4 mA
Freescale Semiconductor - NXP 74AUP1G74GM,125	8-XFQFN Exposed Pad	8-XQFN (1.6x1.6)	315 MHz	Reset Set(Preset)	0.8 V	3.6 V	-40 °C	125 °C	5.8 ns	Complementary	0.6 pF	1	Positive Edge	1	D-Type	Surface Mount	4 mA	4 mA
Freescale Semiconductor - NXP 74AUP1G74GT,115	8-XFDFN	8-XSON SOT833-1 (1.95x1)	315 MHz	Reset Set(Preset)	0.8 V	3.6 V	-40 °C	125 °C	5.8 ns	Complementary	0.6 pF	1	Positive Edge	1	D-Type	Surface Mount	4 mA	4 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3167	$ 0.09

General part information

Flip Flop 1 Element D-Type 1 Bit Positive Edge 8-XFQFN Exposed Pad
