333-082-523-207

Active

EDAC Inc.

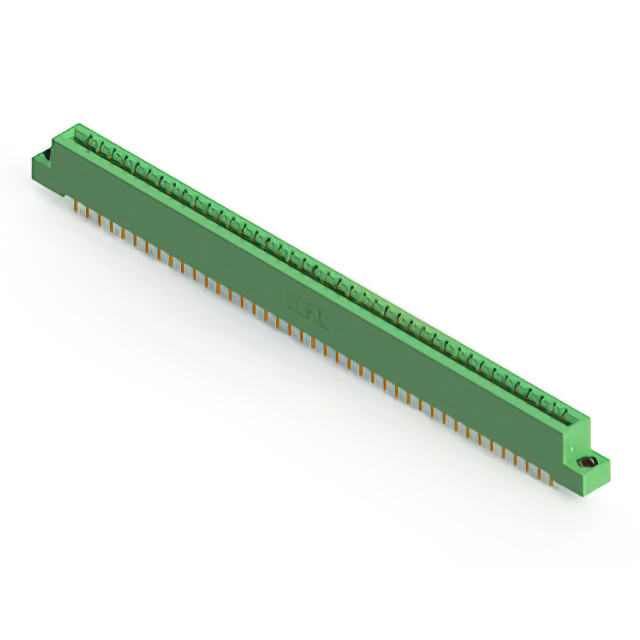

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 82 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN +1

333-082-523-207

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 82 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Drawing EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	333-082-523-207

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Opening, Flush Mount, M3, Threaded Insert
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	82
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

333-082 Series

...

Part	Card Type	Number of Positions	Termination	Number of Rows	Color	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Mounting Type	Contact Type	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Read Out	Gender	Contact Finish Thickness	Contact Finish Thickness	Material - Insulation	Contact Finish	Termination Rows	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Flange Feature	Flange Feature	Features
EDAC Inc. 333-082-558-804	Non Specified - Dual Edge	82	Wire Wrap	2	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole Right Angle	Cantilever	0.156 in	3.96 mm	-40 °C	105 ░C	Copper Alloy	Dual	Female	10 Áin	0.25 Ám	Polyester Thermoplastic	Gold	2	0.156 in	Top Mount Opening Unthreaded	3.96 mm
EDAC Inc. 333-082-559-203	Non Specified - Dual Edge	82	Solder	2	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole Right Angle	Cantilever	0.156 in	3.96 mm	-40 °C	105 ░C	Copper Alloy	Dual	Female	10 Áin	0.25 Ám	Polyester Thermoplastic	Gold	2	0.116 in	Floating Bobbin Flush Mount	2.95 mm
EDAC Inc. 333-082-523-207	Non Specified - Dual Edge	82	Solder	2	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Cantilever	0.156 in	3.96 mm	-40 °C	105 ░C	Copper Alloy	Dual	Female	10 Áin	0.25 Ám	Polyester Thermoplastic	Gold	2		Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 333-082-544-201	Non Specified - Dual Edge	82	Wire Wrap	2	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Cantilever	0.156 in	3.96 mm	-40 °C	105 ░C	Copper Alloy	Dual	Female	10 Áin	0.25 Ám	Polyester Thermoplastic	Gold	2
EDAC Inc. 333-082-521-204	Non Specified - Dual Edge	82	Solder	2	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Cantilever	0.156 in	3.96 mm	-40 °C	105 ░C	Copper Alloy	Dual	Female	10 Áin	0.25 Ám	Polyester Thermoplastic	Gold	2	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm
EDAC Inc. 333-082-542-802	Non Specified - Dual Edge	82	Wire Wrap	2	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Cantilever	0.156 in	3.96 mm	-40 °C	105 ░C	Copper Alloy	Dual	Female	10 Áin	0.25 Ám	Polyester Thermoplastic	Gold	2				3.25 mm	0.128 in
EDAC Inc. 333-082-560-207	Non Specified - Dual Edge	82	Solder	2	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Board Edge Straddle Mount	Cantilever	0.156 in	3.96 mm	-40 °C	105 ░C	Copper Alloy	Dual	Female	10 Áin	0.25 Ám	Polyester Thermoplastic	Gold	2		Flush Mount M3 Threaded Insert Top Opening				Card Extender
EDAC Inc. 333-082-555-207	Non Specified - Dual Edge	82	Solder Eyelet(s)	2	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Board Edge Straddle Mount	Cantilever	0.156 in	3.96 mm	-40 °C	105 ░C	Copper Alloy	Dual	Female	10 Áin	0.25 Ám	Polyester Thermoplastic	Gold	2		Flush Mount M3 Threaded Insert Top Opening				Card Extender
EDAC Inc. 333-082-523-201	Non Specified - Dual Edge	82	Solder	2	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Cantilever	0.156 in	3.96 mm	-40 °C	105 ░C	Copper Alloy	Dual	Female	10 Áin	0.25 Ám	Polyester Thermoplastic	Gold	2
EDAC Inc. 333-082-523-203	Non Specified - Dual Edge	82	Solder	2	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Cantilever	0.156 in	3.96 mm	-40 °C	105 ░C	Copper Alloy	Dual	Female	10 Áin	0.25 Ám	Polyester Thermoplastic	Gold	2	0.116 in	Floating Bobbin Flush Mount	2.95 mm
