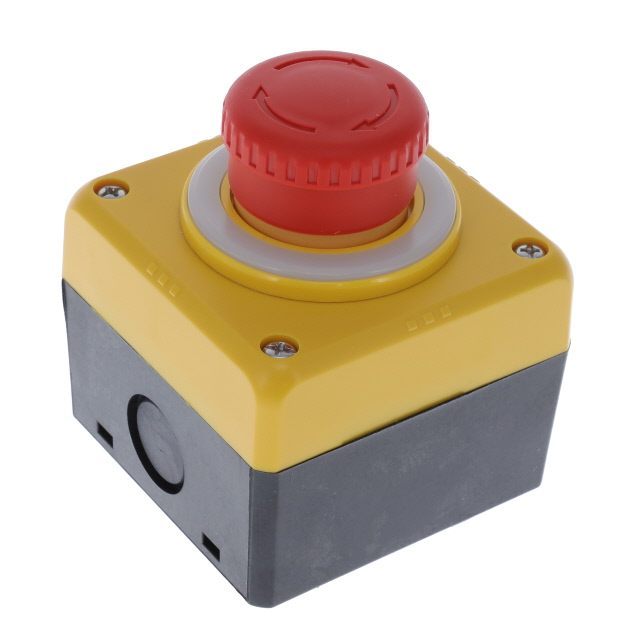

A02ESIFB1W57YC

Obsolete

APEM

SW ESTOP PULL/TWST RESET 6A 240V

Search across all available documentation for this part.

Obsolete

APEM

SW ESTOP PULL/TWST RESET 6A 240V

Technical Specifications

Parameters and characteristics for this part

Specification	A02ESIFB1W57YC

Circuit	DPST-NC
Current Rating (Amps)	8 A, 6 A
Features	Control Box Enclosure, Illuminated (Yellow)
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mounting Type	Free Hanging
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Reset Operation	Pull or Twist
Switch Function	On-Off
Termination Style	Connector
Voltage Rating - AC	240 V
Voltage Rating - DC	24 V

Part	Current Rating (Amps)	Features	Circuit	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Voltage Rating - AC	Reset Operation	Mounting Type	Switch Function	Termination Style
APEM A02ESIFB1W57YC	6 A 8 A	Control Box Enclosure Illuminated (Yellow)	DPST-NC	24 V	55 °C	-20 C	IP65 - Dust Tight Water Resistant	240 V	Pull or Twist	Free Hanging	On-Off	Connector

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SW ESTOP PULL/TWST RESET 6A 240V

Technical documentation and resources

No documents available
