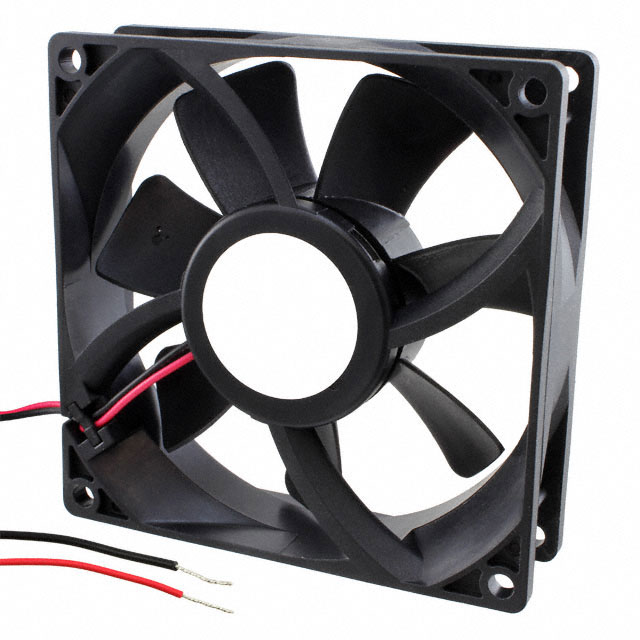

AUB0924VH-A
ActiveDelta Electronics
FAN AXIAL 92X25.4MM 24VDC
Deep-Dive with AI
Search across all available documentation for this part.
AUB0924VH-A
ActiveDelta Electronics
FAN AXIAL 92X25.4MM 24VDC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AUB0924VH-A |
|---|---|
| Air Flow | 81.5 CFM |
| Air Flow | 2.28 m³/min |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Superflo |
| Current Rating (Amps) | 0.25 A |
| Fan Type | Tubeaxial |
| Lifetime @ Temp. | 50000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 46 dB(A) |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 6 W |
| RPM | 3800 RPM |
| Static Pressure | 85.9 Pa |
| Static Pressure | 0.345 in H2O |
| Termination | 2 Wire Leads |
| Voltage - Rated | 24 VDC |
| Voltage Range [Max] | 26.4 VDC |
| Voltage Range [Min] | 14 VDC |
| Weight | 121.11 g |
| Weight | 0.267 lb |
| Width [y] | 25.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 14.04 | |
| 10 | $ 13.40 | |||
| 25 | $ 12.13 | |||
| 72 | $ 11.17 | |||
| 144 | $ 10.02 | |||
| 288 | $ 9.26 | |||
| 504 | $ 8.62 | |||
Description
General part information
AUB0924 Series
Fan Tubeaxial 24VDC Square - 92mm L x 92mm H Superflo 81.5 CFM (2.28m³/min) 2 Wire Leads
