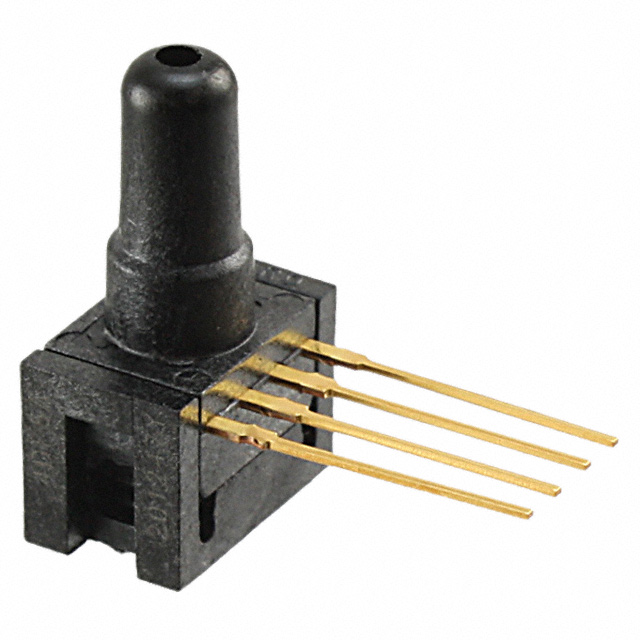

24PCDFA6A

Active

Honeywell Sensing and Productivity Solutions

SENSOR 30PSIA 0.2"

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SENSOR 30PSIA 0.2"

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Operating Pressure	Operating Pressure	Output Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Output [Max]	Output [Min]	Maximum Pressure	Maximum Pressure	Port Size	Accuracy	Port Style	Termination Style	Pressure Type	Applications	Port Size	Port Size
Honeywell Sensing and Productivity Solutions 24PCDFA6G	4-SIP Module	206.84 kPa	30 PSI	Wheatstone Bridge	12 V	10 VDC	Through Hole	85 °C	-40 °C	330 mV	0 mV	60 PSI	413.69 kPa	0.2 " 5 mm	1 %	Barbless	PC Pin	Compound	Board Mount
Honeywell Sensing and Productivity Solutions 24PCDFA6D	4-SIP Module	206.84 kPa	30 PSI	Wheatstone Bridge	12 V	10 VDC	Through Hole	85 °C	-40 °C	330 mV	0 mV	60 PSI	413.69 kPa	5 mm	1 %	Barbless	PC Pin	Differential	Board Mount	Dual Male Tube	0.2 "
Honeywell Sensing and Productivity Solutions 24PCDFA6A	4-SIP Module	206.84 kPa	30 PSI	Wheatstone Bridge	12 V	10 VDC	Through Hole	85 °C	-40 °C	0 mV	-300 mV			0.2 " 5 mm	0.3 %	Barbless	PC Pin		Board Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pressure Sensor 30PSI (206.84kPa) Absolute Male - 0.2" (5mm) Tube -300 mV ~ 0 mV (10V) 4-SIP Module
