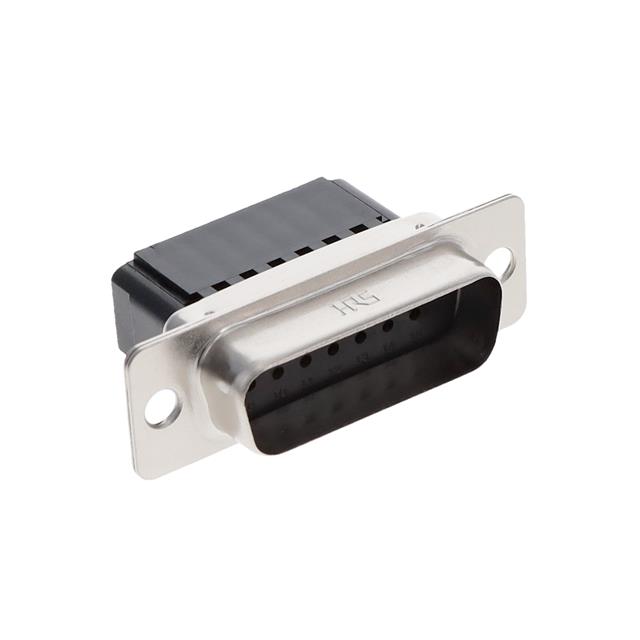

CDA-15P(05)
ActiveHirose Electric USA, Inc.
CRIMP TYPE D-SUBMINIATURE CONNECTORS FOR DISCRETE WIRE TERMINATIONS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CDA-15P(05)
ActiveHirose Electric USA, Inc.
CRIMP TYPE D-SUBMINIATURE CONNECTORS FOR DISCRETE WIRE TERMINATIONS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CDA-15P(05) |
|---|---|
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Plug for Male Contacts |
| Contact Type | Signal |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Features | Grounding Indents |
| Flange Feature | Housing/Shell (Unthreaded) |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Primary Material | Metal |
| Shell Finish Thickness | 39 µin |
| Shell Finish Thickness | 1 µm |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
CDA Series
Plug for Male Contacts Housing D-Sub, High Density Connector 15 Position
