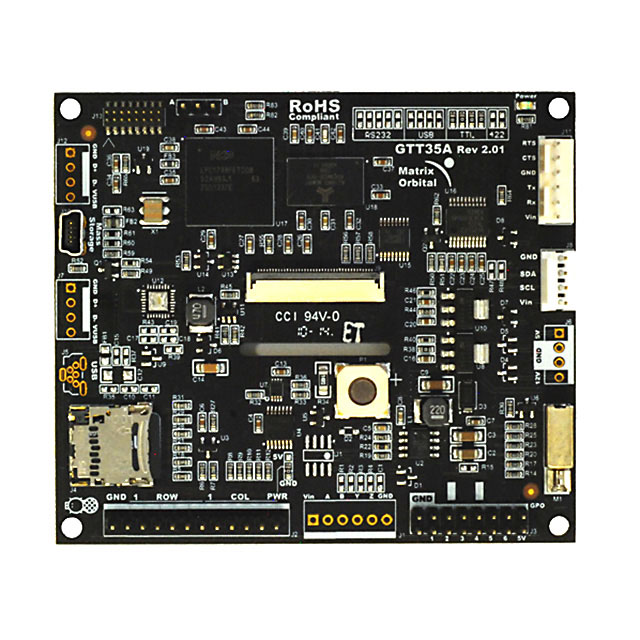

GTT35A-TPR-BLM-B0-H1-CT-VPT

Active

Matrix Orbital

LCD TOUCH TFT 3.5" TTL/I2C

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GTT35A-TPR-BLM-B0-H1-CT-VPT

Active

Matrix Orbital

LCD TOUCH TFT 3.5" TTL/I2C

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GTT35A-TPR-BLM-B0-H1-CT-VPT

Backlight	LED - White
Display Mode	Transmissive
Display Type	TFT - Color
Dot Pitch [x]	0.22 mm
Dot Pitch [y]	0.22 mm
Dot Pixels	QVGA
Dot Pixels [x]	320 pixels
Dot Pixels [y]	240 pixels
Graphics Color	Green, Red, Blue
Interface	TTL, I2C
Touchscreen	Resistive
Viewing Area [x]	72.68 mm
Viewing Area [y]	54.96 mm

GTT35A Series

Part	Display Type	Dot Pixels [y]	Dot Pixels [x]	Viewing Area [y]	Viewing Area [x]	Graphics Color	Interface	Touchscreen	Display Mode	Dot Pitch [y]	Dot Pitch [x]	Backlight	Dot Pixels
Matrix Orbital GTT35A-TPC-BLM-B0-H1-CT-VPT	TFT - Color	240 pixels	320 pixels	52.56 mm	70.08 mm	Blue Green Red	TTL	Capacitive	Transmissive	0.22 mm	0.22 mm
Matrix Orbital GTT35A-TPC-BLM-B0-H1-CU-VPT	TFT - Color	240 pixels	320 pixels	52.56 mm	70.08 mm	Blue Green Red	USB	Capacitive	Transmissive	0.22 mm	0.22 mm
Matrix Orbital GTT35A-TPR-BLM-B0-H1-C4-V5	TFT - Color	240 pixels	320 pixels	52.56 mm	70.08 mm	Blue Green Red		Resistive	Transmissive	0.22 mm	0.22 mm
Matrix Orbital GTT35A-TPC-BLM-B0-H1-C4-VPT	TFT - Color	240 pixels	320 pixels	52.56 mm	70.08 mm	Blue Green Red		Capacitive	Transmissive	0.22 mm	0.22 mm
Matrix Orbital GTT35A-TPC-BLM-B0-H1-CU-V5	TFT - Color	240 pixels	320 pixels	52.56 mm	70.08 mm	Blue Green Red	USB	Capacitive	Transmissive	0.22 mm	0.22 mm
Matrix Orbital GTT35A-TPR-BLM-B0-H1-CS-VPT	TFT - Color	240 pixels	320 pixels	54.96 mm	72.68 mm	Blue Green Red	I2C RS-232	Resistive	Transmissive	0.22 mm	0.22 mm	LED - White	QVGA
Matrix Orbital GTT35A-TPR-BLM-B0-H1-CS-V5	TFT - Color	240 pixels	320 pixels	54.96 mm	72.68 mm	Blue Green Red	I2C RS-232	Resistive	Transmissive	0.22 mm	0.22 mm	LED - White	QVGA
Matrix Orbital GTT35A-TPC-BLM-B0-H1-CT-V5	TFT - Color	240 pixels	320 pixels	52.56 mm	70.08 mm	Blue Green Red	TTL	Capacitive	Transmissive	0.22 mm	0.22 mm
Matrix Orbital GTT35A-TPR-BLM-B0-H1-CT-VPT	TFT - Color	240 pixels	320 pixels	54.96 mm	72.68 mm	Blue Green Red	I2C TTL	Resistive	Transmissive	0.22 mm	0.22 mm	LED - White	QVGA
Matrix Orbital GTT35A-TPR-BLM-B0-H1-CU-V5	TFT - Color	240 pixels	320 pixels	54.96 mm	72.68 mm	Blue Green Red	I2C USB	Resistive	Transmissive	0.22 mm	0.22 mm	LED - White	QVGA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 153.07

Description

General part information

GTT35A Series

Resistive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color I2C, TTL 3.5" (88.90mm) 320 x 240 (QVGA)

Documents

Technical documentation and resources
