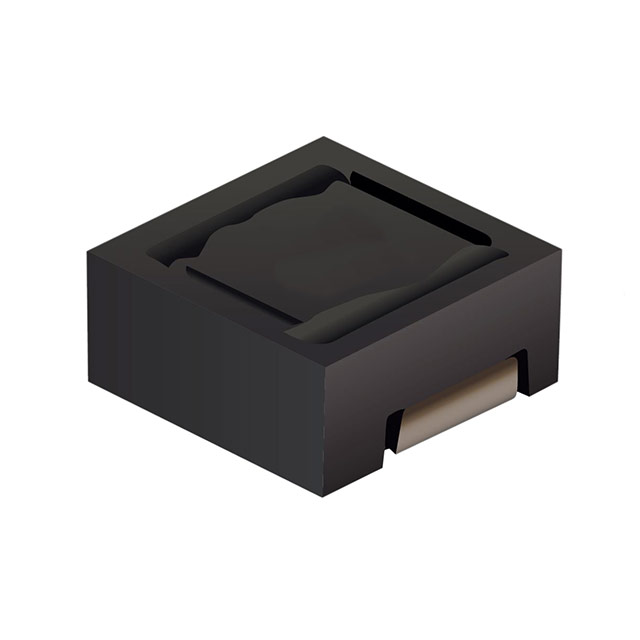

SRR3818A-330M
ActiveBourns Inc.
IND,3.8X3.8X1.8MM,1UH30%,3.6A,SHDSMD /TAPE & REEL - 7" REEL
Deep-Dive with AI
Search across all available documentation for this part.
SRR3818A-330M
ActiveBourns Inc.
IND,3.8X3.8X1.8MM,1UH30%,3.6A,SHDSMD /TAPE & REEL - 7" REEL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SRR3818A-330M |
|---|---|
| Current - Saturation (Isat) | 340 mA |
| Current Rating (Amps) | 650 mA |
| DC Resistance (DCR) [Max] | 740 mOhm |
| Frequency - Self Resonant | 20 MHz |
| Height - Seated (Max) [Max] [z] | 2 mm |
| Height - Seated (Max) [Max] [z] | 0.079 in |
| Inductance | 33 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Tolerance | 20 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.86 | |
| 10 | $ 0.74 | |||
| 25 | $ 0.68 | |||
| 50 | $ 0.62 | |||
| 100 | $ 0.55 | |||
| 250 | $ 0.52 | |||
| 500 | $ 0.44 | |||
| Digi-Reel® | 1 | $ 0.86 | ||
| 10 | $ 0.74 | |||
| 25 | $ 0.68 | |||
| 50 | $ 0.62 | |||
| 100 | $ 0.55 | |||
| 250 | $ 0.52 | |||
| 500 | $ 0.44 | |||
| Tape & Reel (TR) | 1000 | $ 0.39 | ||
| 3000 | $ 0.38 | |||
| 5000 | $ 0.37 | |||
| 10000 | $ 0.36 | |||
| 25000 | $ 0.34 | |||
| Newark | Each (Supplied on Full Reel) | 1 | $ 0.43 | |
| 5000 | $ 0.42 | |||
| 10000 | $ 0.39 | |||
| 20000 | $ 0.36 | |||
| 30000 | $ 0.34 | |||
| 50000 | $ 0.32 | |||
Description
General part information
SRR3818A Series
33 µH Shielded Drum Core, Wirewound Inductor 650 mA 740mOhm Max Nonstandard
