CCA28-84-00

Active

Vector Electronics

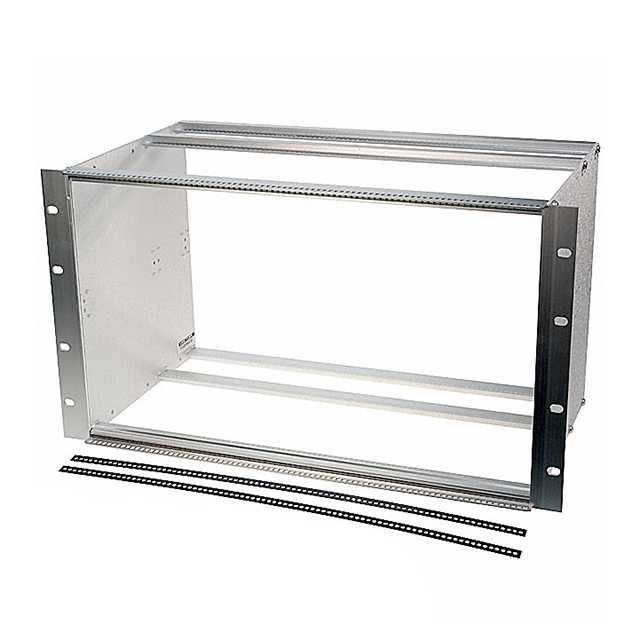

CARD RACK COMPACT ALUM 10X19

Search across all available documentation for this part.

Active

Vector Electronics

CARD RACK COMPACT ALUM 10X19

Technical Specifications

Parameters and characteristics for this part

Specification	CCA28-84-00

Card Size Range [x]	8.66 in
Card Size Range [x]	219.96 mm
Card Size Range [z]	233.35 mm
Card Size Range [z]	9.187 in
Guide Method	Guide Plate
Height [z]	6U
Height [z]	266.7 mm
Height [z]	266.7 mm
Material	Aluminum
Size / Dimension [x]	254 mm
Size / Dimension [x]	10 "
Size / Dimension [y]	19 "
Size / Dimension [y]	482.6 mm
Type	Assembled Subracks with Card Guides

Part	Type	Card Size Range [x]	Card Size Range [z]	Card Size Range [x]	Card Size Range [z]	Guide Method	Height [z]	Height [z]	Height [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Material	Size / Dimension [y]	Size / Dimension [x]
Vector Electronics CCA28-84-01	Assembled Subracks with Card Guides	8.66 in	233.35 mm	219.96 mm	9.187 in	Guide Plate	6U	266.7 mm	266.7 mm	19 "	482.6 mm	254 mm	10 "	Aluminum
Vector Electronics CCA28-84-00	Assembled Subracks with Card Guides	8.66 in	233.35 mm	219.96 mm	9.187 in	Guide Plate	6U	266.7 mm	266.7 mm	19 "	482.6 mm	254 mm	10 "	Aluminum
Vector Electronics CCA28-84-05	Assembled Subracks with Card Guides	8.66 in	233.35 mm	219.96 mm	9.187 in	Guide Plate	6U	266.7 mm	266.7 mm	19 "	482.6 mm	254 mm	10 "	Aluminum
Vector Electronics CCA28-84-03	Assembled Subracks with Card Guides	6.299 in	233.35 mm	160 mm	9.187 in	Guide Plate	6U	266.7 mm	266.7 mm		431.8 mm	254 mm		Aluminum	17 "	10 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Aluminum Assembled Subracks with Card Guides 6U = 10.500" (266.70mm)
