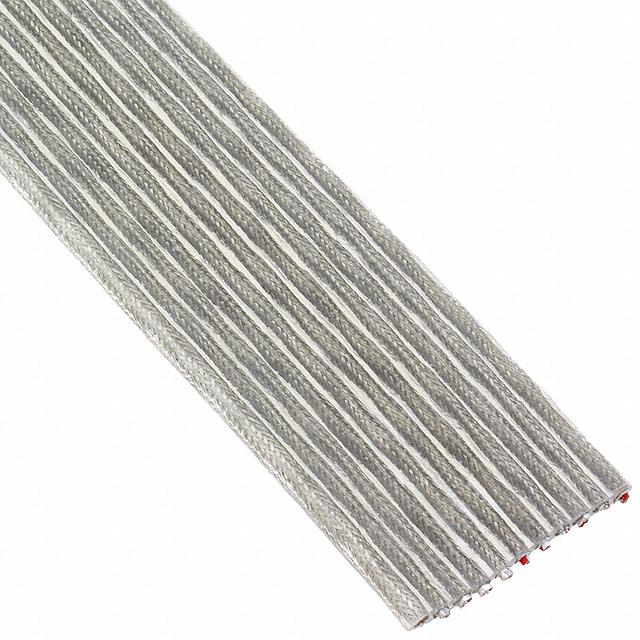

CL-1000
UnknownCicoil
CBL RIBN 22COND TWIST-PAIR 100'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CL-1000
UnknownCicoil
CBL RIBN 22COND TWIST-PAIR 100'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CL-1000 |
|---|---|
| Cable Type | Flat Twin Axial |
| Current Rating (Amps) | 5 A |
| Insulation Resistance | 108 Ohm |
| Jacket (Insulation) Material | Flexx-Sil™ |
| Jacket Color | Clear |
| Length | 15.24 m, 60.96 m, 7.62 m |
| Length | 50 ft, 200 ', 25 ft |
| Length [x] | 100 ft |
| Length [x] | 30.48 m |
| Number of Conductors | 22 |
| Operating Temperature [Max] | 260 ░C |
| Operating Temperature [Min] | -65 ░C |
| Ratings | CE, UL E324413 |
| Ribbon Thickness [custom] | 0.164 in |
| Ribbon Thickness [custom] | 4.16 mm |
| Ribbon Width [y] | 38.1 mm |
| Ribbon Width [y] | 1.5 in |
| Shielding | Shielded |
| Voltage | 30 V |
| Wire Gauge | 28 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 200 | $ 57.12 | |
Description
General part information
- Series
Flat Ribbon Cable Clear 22 (11 Pair Twisted) Conductors Flat Twin Axial 100.0' (30.48m)
