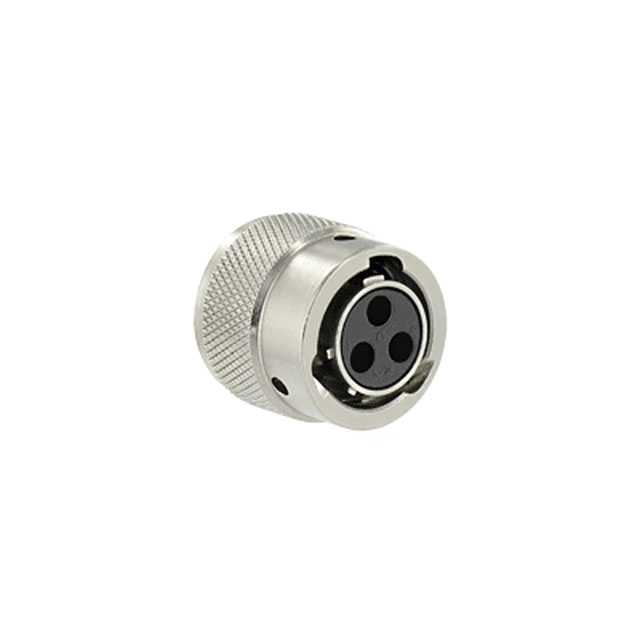

UT06103SH

Active

Souriau-Sunbank by Eaton

FEMALE PLUG, IP67 AND 48H SALT SPRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing EN Technical Data Sheet EN +1

UT06103SH

Active

Souriau-Sunbank by Eaton

FEMALE PLUG, IP67 AND 48H SALT SPRAY

Deep-Dive with AI

DocumentsDrawing EN Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UT06103SH

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut
Housing Color	Silver
Ingress Protection	IP69K, IP68, IP67
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions [custom]	2
Number of Positions [custom]	3
Number of Positions [custom]	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Alloy, Halogen Free
Shell Size - Insert	10-3
Shielding	Shielded
Type	For Female Sockets

UT061 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Shell Size - Insert	Orientation	Shielding	Ingress Protection	Mounting Type	Contact Type	Features	Contact Size	Note	Shell Material	Contact Shape	Fastening Type	Housing Color	Material Flammability Rating	Insert Material	Shell Finish	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Type	Number of Positions	Number of Positions [custom]	Number of Positions [custom]	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Contact Size
Souriau-Sunbank by Eaton UT06103SH	-40 °C	105 ░C	Plug Housing	10-3	N	Shielded	IP67 IP68 IP69K	Free Hanging (In-Line)	Crimp	Coupling Nut	16	Contacts Not Included	Zinc Alloy Halogen Free	Circular	Bayonet Lock	Silver	UL94 V-0	Polyamide (PA66) Nylon 6/6	Nickel	2	3	1	For Female Sockets
Souriau-Sunbank by Eaton UT061412S45N	-40 °C	105 ░C	Plug Housing	14-12	N			Free Hanging (In-Line)	Crimp	Coupling Nut	16	Contacts Not Included	Aluminum Alloy	Circular		Silver		Polyamide (PA66) Nylon 6/6	Nickel				For Female Sockets	12
Souriau-Sunbank by Eaton UT06147PH	-40 °C	105 ░C	Plug Housing		N	Shielded	IP67 IP68 IP69K	Free Hanging (In-Line)	Crimp	Coupling Nut	16	Contacts Not Included	Zinc Alloy Halogen Free	Circular	Bayonet Lock	Silver	UL94 V-0	Polyamide (PA66) Nylon 6/6	Nickel				For Male Pins		1	6	14	7
Souriau-Sunbank by Eaton UT061492PH02	-40 °C	105 ░C	Plug Housing		N	Shielded	IP67 IP68 IP69K	Free Hanging (In-Line)	Crimp	Coupling Nut	16	Contacts Not Included	Zinc Alloy Halogen Free	Circular	Bayonet Lock	Black	UL94 V-0	Thermoplastic Glass Filled	Anodized				For Male Pins	12			92	14
Souriau-Sunbank by Eaton UT061412SWH	-40 °C	105 ░C	Plug Housing	14-12	W	Shielded	IP67 IP68 IP69K	Free Hanging (In-Line)	Crimp	Coupling Nut	16	Contacts Not Included	Zinc Alloy Halogen Free	Circular	Bayonet Lock	Silver	UL94 V-0	Polyamide (PA66) Nylon 6/6	Nickel				For Female Sockets	12
Souriau-Sunbank by Eaton UT061412PWH	-40 °C	105 ░C	Plug Housing	14-12	W	Shielded	IP67 IP68 IP69K	Free Hanging (In-Line)	Crimp	Coupling Nut	16	Contacts Not Included	Zinc Alloy Halogen Free	Circular	Bayonet Lock	Silver	UL94 V-0	Polyamide (PA66) Nylon 6/6	Nickel				For Male Pins	12
Souriau-Sunbank by Eaton UT06104PT	-55 °C	125 °C	Plug Housing	10-4	N	Shielded		Free Hanging (In-Line)	Crimp	Coupling Nut	16	Contacts Not Included	Aluminum Alloy	Circular	Bayonet Lock	Silver	UL94 V-0	Thermoplastic Glass Filled	Tin				For Male Pins	4
Souriau-Sunbank by Eaton UT06103PH02	-40 °C	105 ░C	Plug Housing	10-3	N	Shielded	IP67 IP68 IP69K	Free Hanging (In-Line)	Crimp	Coupling Nut	16	Contacts Not Included	Zinc Alloy Halogen Free	Circular	Bayonet Lock	Black	UL94 V-0	Thermoplastic Glass Filled	Anodized	2	3	1	For Male Pins
Souriau-Sunbank by Eaton UT06128SH02	-40 °C	105 ░C	Plug Housing	12-8	N	Shielded	IP67 IP68 IP69K	Free Hanging (In-Line)	Crimp	Coupling Nut	16	Contacts Not Included	Zinc Alloy Halogen Free	Circular	Bayonet Lock	Black	UL94 V-0	Thermoplastic Glass Filled	Anodized				For Female Sockets	8
Souriau-Sunbank by Eaton UT06102W2SH	-40 °C	105 ░C	Plug Housing	10-2W2	N	Shielded	IP67 IP68 IP69K	Free Hanging (In-Line)	Crimp	Coupling Nut		Contacts Not Included	Zinc Alloy Halogen Free	Circular	Bayonet Lock	Silver	UL94 V-0	Polyamide (PA66) Nylon 6/6	Nickel				For Female Sockets	4					12 (2) 20 (2)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 35.63
		10	$ 31.20
		25	$ 29.85
		50	$ 28.89
		100	$ 27.93
		250	$ 26.39
Newark	Each	1	$ 43.53
		50	$ 38.06
		100	$ 32.53
		500	$ 29.05
		1000	$ 28.48
		2500	$ 28.19
		5000	$ 27.94
		10000	$ 27.24

Description

General part information

UT061 Series

3 (2 + PE) Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut

Documents

Technical documentation and resources

Drawing EN

Datasheet

Technical Data Sheet EN

Datasheet
