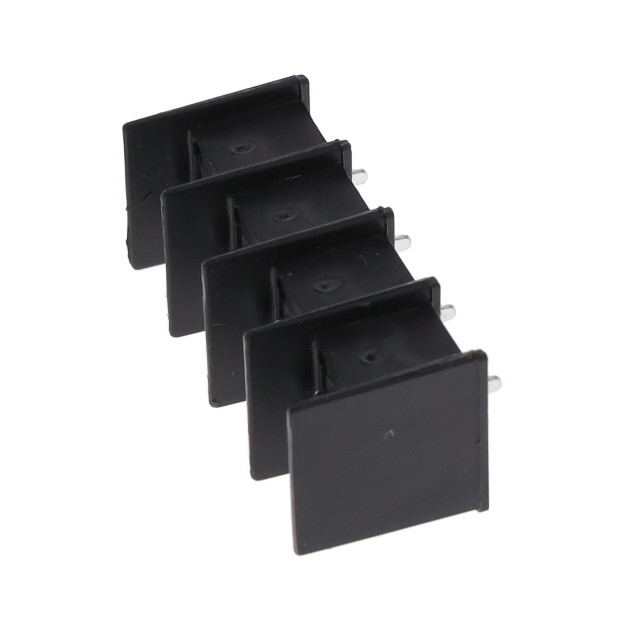

431100-04-0

Active

Curtis Industries

CONN BARRIER STRIP 4CIRC 0.438"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTerminal Blocks Catalog Datasheet

431100-04-0

Active

Curtis Industries

CONN BARRIER STRIP 4CIRC 0.438"

Deep-Dive with AI

DocumentsTerminal Blocks Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	431100-04-0

Barrier Type	2 Wall (Dual)
Bottom Termination	PC Pin
Current Rating (Amps)	20 A
Material - Insulation	Polypropylene (PP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Circuits	4
Number of Rows	1
Number of Wire Entries	4
Operating Temperature	105 C
Pitch [x]	11.12 mm
Pitch [x]	0.438 in
Terminal Block Type	Barrier Block
Terminal Screw Finish	Zinc
Terminal Screw Material	Steel
Top Termination	Screws
Voltage Rating	600 V
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	12 AWG

431100 Series

Part	Wire Gauge [Min]	Wire Gauge [Max]	Number of Wire Entries	Pitch [x]	Pitch [x]	Material Flammability Rating	Material - Insulation	Terminal Screw Finish	Top Termination	Number of Rows	Terminal Block Type	Terminal Screw Material	Operating Temperature	Bottom Termination	Barrier Type	Number of Circuits	Current Rating (Amps)	Mounting Type	Voltage Rating	Number of Circuits [custom]
Curtis Industries 431100-18-0	12 AWG	22 AWG	18	11.12 mm	0.438 in	UL94 V-0	Polypropylene (PP)	Zinc	Screws	1	Barrier Block	Steel	105 C	PC Pin	2 Wall (Dual)	18	20 A	Through Hole	600 V
Curtis Industries 431100-17-0	12 AWG	22 AWG	17	11.12 mm	0.438 in	UL94 V-0	Polypropylene (PP)	Zinc	Screws	1	Barrier Block	Steel	105 C	PC Pin	2 Wall (Dual)	17	20 A	Through Hole	600 V
Curtis Industries 431100-21-0	12 AWG	22 AWG	21	11.12 mm	0.438 in	UL94 V-0	Polypropylene (PP)	Zinc	Screws	1	Barrier Block	Steel	105 C	PC Pin	2 Wall (Dual)	21	20 A	Through Hole	600 V
Curtis Industries 431100-08-0	12 AWG	22 AWG	8	11.12 mm	0.438 in	UL94 V-0	Polypropylene (PP)	Zinc	Screws	1	Barrier Block	Steel	105 C	PC Pin	2 Wall (Dual)		20 A	Through Hole	600 V	8
Curtis Industries 431100-16-0	12 AWG	22 AWG	16	11.12 mm	0.438 in	UL94 V-0	Polypropylene (PP)	Zinc	Screws	1	Barrier Block	Steel	105 C	PC Pin	2 Wall (Dual)	16	20 A	Through Hole	600 V
Curtis Industries 431100-07-0	12 AWG	22 AWG	7	11.12 mm	0.438 in	UL94 V-0	Polypropylene (PP)	Zinc	Screws	1	Barrier Block	Steel	105 C	PC Pin	2 Wall (Dual)	7	20 A	Through Hole	600 V
Curtis Industries 431100-11-0	12 AWG	22 AWG	11	11.12 mm	0.438 in	UL94 V-0	Polypropylene (PP)	Zinc	Screws	1	Barrier Block	Steel	105 C	PC Pin	2 Wall (Dual)	11	20 A	Through Hole	600 V
Curtis Industries 431100-04-0	12 AWG	22 AWG	4	11.12 mm	0.438 in	UL94 V-0	Polypropylene (PP)	Zinc	Screws	1	Barrier Block	Steel	105 C	PC Pin	2 Wall (Dual)	4	20 A	Through Hole	600 V
Curtis Industries 431100-13-0	12 AWG	22 AWG	13	11.12 mm	0.438 in	UL94 V-0	Polypropylene (PP)	Zinc	Screws	1	Barrier Block	Steel	105 C	PC Pin	2 Wall (Dual)	13	20 A	Through Hole	600 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.37
		10	$ 1.80
		25	$ 1.69
		50	$ 1.50
		100	$ 1.47
		250	$ 1.44

Description

General part information

431100 Series

4 Circuit 0.438" (11.12mm) Barrier Block Connector Screws

Documents

Technical documentation and resources

Terminal Blocks Catalog

Datasheet
