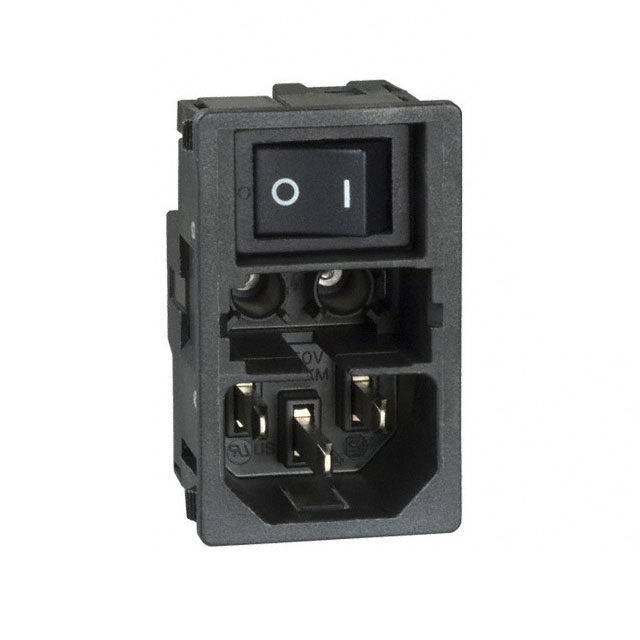

KM00.1105.11 - KM00.1105.11

KM00.1105.11

Active
SCHURTER Inc.

KM, MOUNTING:QUICK CONNECT TERMINALS 4.8 X 0.8 MM, FUSE HOLDER: 2-POLE, ROCKER SWITCH, NON-ILLUMINATED, 2-POLE, APPLIANCE INLET:

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetTechnical Data Sheet EN+2
KM00.1105.11 - KM00.1105.11

KM00.1105.11

Active
SCHURTER Inc.

KM, MOUNTING:QUICK CONNECT TERMINALS 4.8 X 0.8 MM, FUSE HOLDER: 2-POLE, ROCKER SWITCH, NON-ILLUMINATED, 2-POLE, APPLIANCE INLET:

Deep-Dive with AI

DocumentsDatasheetTechnical Data Sheet EN+2

Technical Specifications

Parameters and characteristics for this part

SpecificationKM00.1105.11
Accomodates a FuseTrue
Approval AgencyCCC, ENEC, cULus
Connector StyleIEC 320-C14
Connector TypeReceptacle, Male Blades - Module
Current Rating - Appliance Inlet10 A
FeaturesTerminating Cover
Filter TypeUnfiltered - Commercial
Fuse Holder, DrawerDrawer Sold Separate
Ingress ProtectionIP40
Material Flammability RatingUL94 V-0
Mounting TypePanel Mount, Snap-In
Panel Cutout Dimensions [x]28 mm
Panel Cutout Dimensions [y]47 mm
Panel Thickness [Max]2.5 mm
Panel Thickness [Max]0.098 in
Panel Thickness [Min]1 mm
Panel Thickness [Min]0.039 in
Switch FeaturesSwitch On-Off
Termination0.189 ", 4.8 mm
TerminationQuick Connect
Voltage Rating - Appliance Inlet250 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 13.96
50$ 12.93
100$ 12.87
NewarkEach 50$ 19.78
100$ 18.70
250$ 17.62
500$ 16.43
1000$ 15.46

Description

General part information

KM00.1105 Series

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
