BU-00225-0

Active

Mueller Electric Co

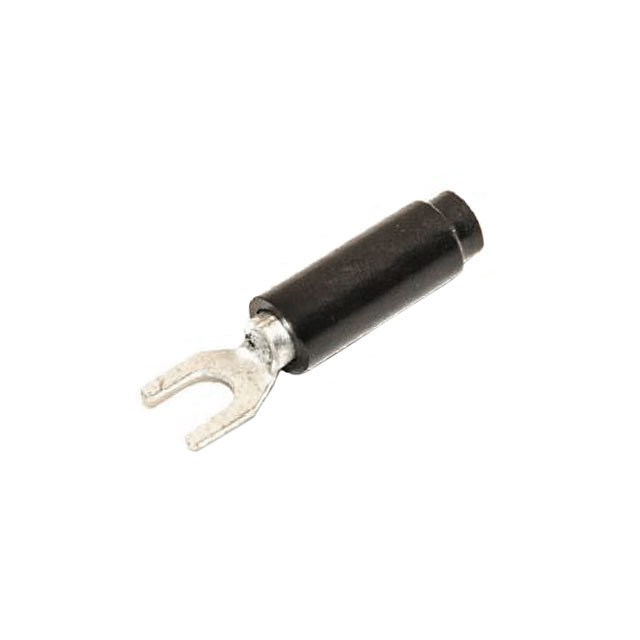

THREADED SPADE LUG,BLACK,BULK

Search across all available documentation for this part.

Active

Mueller Electric Co

THREADED SPADE LUG,BLACK,BULK

Technical Specifications

Parameters and characteristics for this part

Specification	BU-00225-0

Color	Black
Contact Finish	Zinc
Contact Material	Brass
Insulation	Insulated
Length - Overall [x]	1.5 in
Length - Overall [x]	38.1 mm
Material - Insulation	Acrylonitrile Butadiene Styrene (ABS)
Mounting Type	Free Hanging (In-Line)
Terminal Type	Standard
Termination	Threaded
Tongue Inside Opening [x]	0.205 in
Tongue Inside Opening [x]	5.21 mm
Width - Outer Edges [y]	9.02 mm
Width - Outer Edges [y]	0.355 in

Part	Insulation	Color	Width - Outer Edges [y]	Width - Outer Edges [y]	Terminal Type	Length - Overall [x]	Length - Overall [x]	Termination	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Contact Material	Contact Finish	Mounting Type	Material - Insulation
Mueller Electric Co BU-00225-0	Insulated	Black	9.02 mm	0.355 in	Standard	1.5 in	38.1 mm	Threaded	0.205 in	5.21 mm	Brass	Zinc	Free Hanging (In-Line)	Acrylonitrile Butadiene Styrene (ABS)
Mueller Electric Co BU-00225-2	Insulated	Red	9.02 mm	0.355 in	Standard	1.5 in	38.1 mm	Threaded	0.205 in	5.21 mm	Brass	Zinc	Free Hanging (In-Line)	Acrylonitrile Butadiene Styrene (ABS)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Black Spade Terminal Connector Threaded
