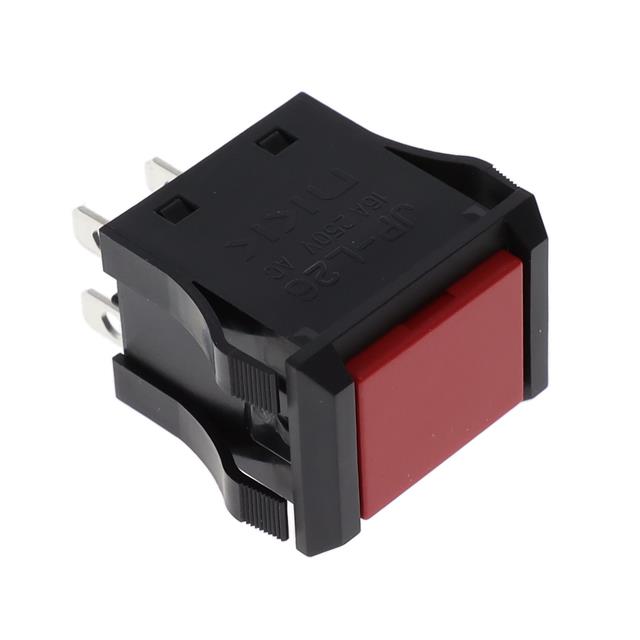

JPL26B-C - JPL26B-C

JPL26B-C

Active
NKK Switches

INTERNATIONALLY APPROVED PUSHBUTTON

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
JPL26B-C - JPL26B-C

JPL26B-C

Active
NKK Switches

INTERNATIONALLY APPROVED PUSHBUTTON

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationJPL26B-C
Actuator MarkingNo Marking
Actuator TypeRectangular, Button
CircuitDPST
Color - Actuator/CapRed
Current Rating (Amps)16 A
Electrical Life25000 Steps
FeaturesTactile Feedback
Mechanical Life25000 Steps
Mounting TypePanel Mount, Snap-In
Operating Temperature [Max] [custom]158 °F
Operating Temperature [Min] [custom]-10 °C
Panel Cutout Dimensions [x]28 mm
Panel Cutout Dimensions [y]21.2 mm
Switch FunctionOff-On
Termination StyleSolder Lug
TypeStandard
Voltage Rating - AC125 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 16.46
10$ 14.76
25$ 14.11
40$ 13.38
80$ 12.90
230$ 12.08
440$ 11.19
945$ 10.04
LCSCPiece 1$ 6.30
NewarkEach 1$ 31.39
5$ 29.82
10$ 27.64
25$ 25.21
50$ 21.82
100$ 20.37
250$ 18.55

Description

General part information

JPL26B Series

Pushbutton Switch DPST Standard Panel Mount, Snap-In
