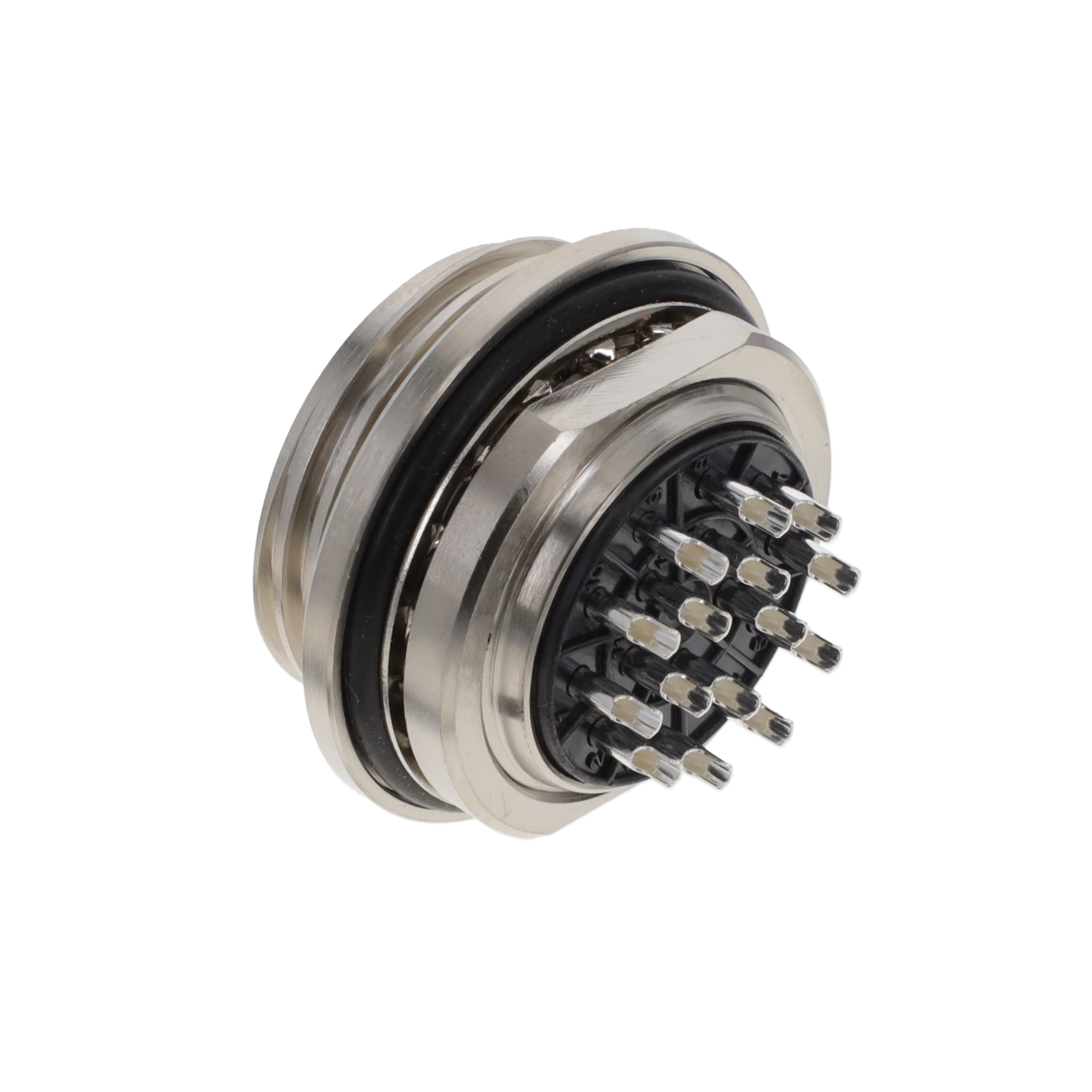

RM21WTR-15S(31)

Active

Hirose Electric USA, Inc.

HRS ORIGINAL MULTI-PURPOSE HIGH-PIN-COUNT MINIATURE WATERPROOF

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RM21WTR-15S(31)

Active

Hirose Electric USA, Inc.

HRS ORIGINAL MULTI-PURPOSE HIGH-PIN-COUNT MINIATURE WATERPROOF

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RM21WTR-15S(31)

Color	Black
Connector Type	Receptacle, Female Sockets
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Insert Material	Polyphenylene Sulfide (PPS)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	15
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Size - Insert	25
Shielding	Shielded

RM21WTR Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Orientation	Material Flammability Rating	Number of Positions	Current Rating (Amps)	Ingress Protection	Shell Finish	Primary Material	Connector Type	Shell Size - Insert	Mounting Feature	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Contact Material	Contact Finish - Mating	Color	Shell Material	Shielding	Features	Accessory Type	For Use With/Related Products
Hirose Electric USA, Inc. RM21WTR-15P(71)	-25 °C	85 °C	Diallyl Phthalate (DAP)	Keyed	UL94 V-0	15	5 A	IP67/IP68 - Dust Tight Waterproof	Nickel	Metal	Male Pins Receptacle	21	Bulkhead - Rear Side Nut	157.5 µin	4 µm	500 VAC 700 VDC	Brass	Silver	Silver	Brass
Hirose Electric USA, Inc. RM21WTR-20P(81)	-25 °C	85 °C	Polyphenylene Sulfide (PPS)	Keyed	UL94 V-0	20	5 A	IP67/IP68 - Dust Tight Waterproof	Nickel	Metal	Male Pins Receptacle	21	Bulkhead - Rear Side Nut			350 VAC 490 VDC	Copper Alloy	Silver	Silver	Brass	Unshielded
Hirose Electric USA, Inc. RM21WTR-15S(31)	-25 °C	85 °C	Polyphenylene Sulfide (PPS)	Keyed	UL94 V-0	15		IP67/IP68 - Dust Tight Waterproof		Metal	Receptacle Female Sockets	25	Bulkhead - Rear Side Nut						Black		Shielded
Hirose Electric USA, Inc. RM21WTR-20P(71)	-25 °C	85 °C	Diallyl Phthalate (DAP)	Keyed	UL94 V-0	20	5 A	IP67/IP68 - Dust Tight Waterproof	Nickel	Metal	Male Pins Receptacle	21	Bulkhead - Rear Side Nut	157.5 µin	4 µm	350 VAC 490 VDC	Brass	Silver	Silver	Brass
Hirose Electric USA, Inc. RM21WTR-20S(81)
Hirose Electric USA, Inc. RM21WTR-C(71)												21										Metal Chain with Ring Waterproof	Cap (Cover) Dust	RM-W Series Receptacle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 34.57
		10	$ 30.27
		25	$ 28.96
		50	$ 28.03
		100	$ 27.09
		250	$ 25.60
Newark	Each	1	$ 42.00
		50	$ 37.00

Description

General part information

RM21WTR Series

15 Position Circular Connector Receptacle, Female Sockets Solder Cup
