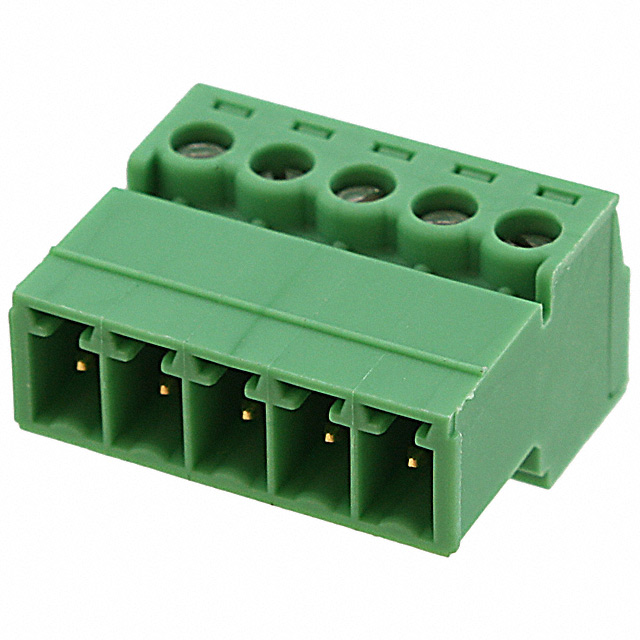

1943276

Active

Phoenix Contact

CONN PC TERMINAL BLOCK M 5 POS 3.81MM SCREW RA CABLE MOUNT 8A CARDBOARD

Search across all available documentation for this part.

Active

Phoenix Contact

CONN PC TERMINAL BLOCK M 5 POS 3.81MM SCREW RA CABLE MOUNT 8A CARDBOARD

Technical Specifications

Parameters and characteristics for this part

Specification	1943276

Color	Green
Contact Mating Finish	Gold
Current - IEC	8 A
Current - UL	8 A
Housing Material	Polyamide (PA), Nylon
Insulation Height	0.437 in
Insulation Height	11.1 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Pitch [x]	0.15 in
Pitch [x]	3.81 mm
Positions Per Level	5
Screw Size	M2
Termination Style	Screw - Rising Cage Clamp
Torque - Screw [Max]	2.2 Lb-In
Torque - Screw [Max]	0.25 Nm
Torque - Screw [Min]	0.22 Nm
Torque - Screw [Min]	1.9 Lb-In
Voltage - IEC	320 V
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	30 AWG
Wire Gauge or Range - AWG [Min]	14 AWG
Wire Gauge or Range - mm˛ [Max]	1.5 mm˛
Wire Gauge or Range - mm˛ [Min]	0.14 mm˛
Wire Strip Length	7 mm

Pluggable Terminal Blocks 5 Pos 3.81mm Invert Plug 28-16AWG Screw

Part	Mounting Type	Contact Mating Finish	Color	Positions Per Level	Screw Size	Current - UL	Insulation Height	Insulation Height	Number of Levels	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Torque - Screw [Max]	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Voltage - IEC	Wire Strip Length	Current - IEC	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Housing Material	Pitch [x]	Pitch [x]	Material Flammability Rating	Termination Style	Voltage - UL
Phoenix Contact 1943276	Free Hanging (In-Line)	Gold	Green	5	M2	8 A	0.437 in	11.1 mm	1	14 AWG	30 AWG	2.2 Lb-In	0.25 Nm	0.22 Nm	1.9 Lb-In	320 V	7 mm	8 A	0.14 mm˛	1.5 mm˛	Polyamide (PA) Nylon	0.15 in	3.81 mm	UL94 V-0	Screw - Rising Cage Clamp	300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pluggable Terminal Blocks 5 Pos 3.81mm Invert Plug 28-16AWG Screw
