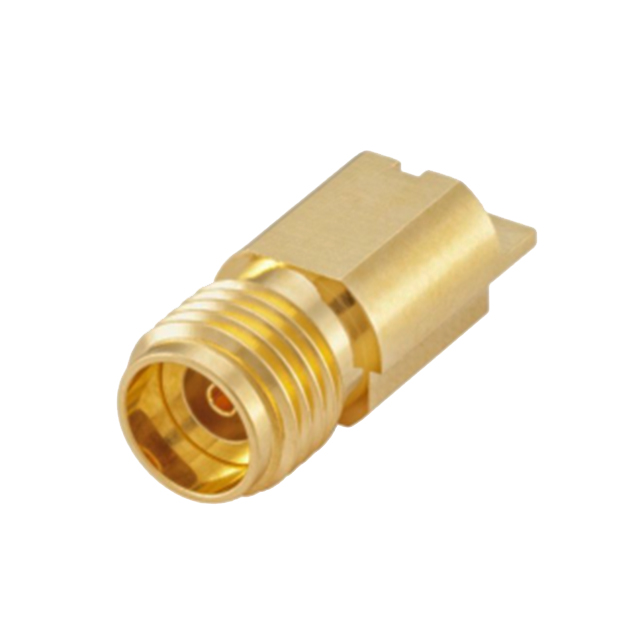

02K249-40ML5

Active

Rosenberger

CONN RPC2.92 JCK ST 50OHM EDGEMT

Search across all available documentation for this part.

Active

Rosenberger

CONN RPC2.92 JCK ST 50OHM EDGEMT

Technical Specifications

Parameters and characteristics for this part

Specification	02K249-40ML5

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	2.92 mm
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polyetheretherketone (PEEK), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	40 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Cutout, Board Edge, Surface Mount
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	250 VDC

Part	Body Finish	Contact Termination	Frequency - Max [Max]	Dielectric Material	Mating Cycles	Connector Style	Center Contact Plating	Impedance	Connector Type	Body Material	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Shield Termination	Number of Ports	Center Contact Material	Mounting Type	Voltage Rating
Rosenberger 02K249-40ML5	Gold	Solder	40 GHz	Polyetheretherketone (PEEK) Polytetrafluoroethylene (PTFE)	500	2.92 mm	Gold	50 Ohms	Female Socket Jack	Brass	Gold	85 °C	-40 °C	Solder	1	Beryllium Copper	Board Edge Cutout Surface Mount	250 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.92mm Connector Jack, Female Socket 50 Ohms Board Edge, Cutout; Surface Mount Solder
