POE14-050
ActivePhihong USA

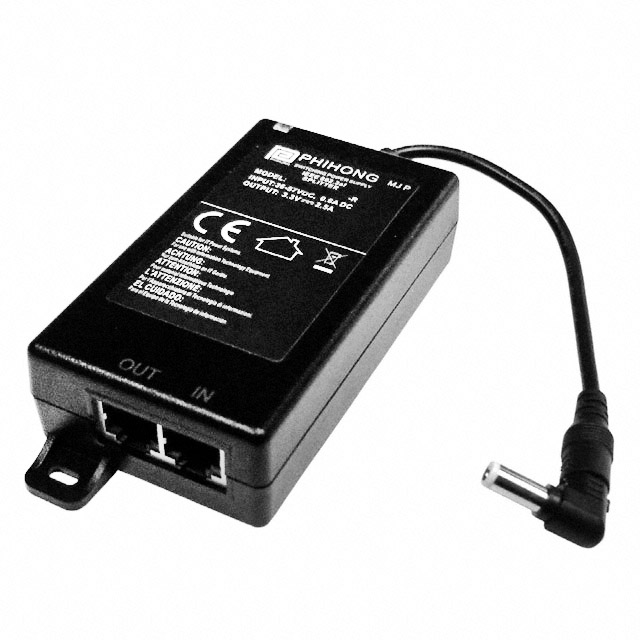

POE SPLITTER 12.5W 5V DESKTOP
Deep-Dive with AI
Search across all available documentation for this part.
POE14-050
ActivePhihong USA
POE SPLITTER 12.5W 5V DESKTOP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | POE14-050 |
|---|---|
| Approval Agency | CE |
| Compliance | IEEE802.3af |
| Current - Output | 2.2 A |
| Data Rate | 10 Mbps, 1000 Mbps, 100 Mbps |
| Efficiency | 72 % |
| Features | OVP, OCP, OTP |
| Input Connector | RJ45 (Data, Power) |
| Mounting Type | Desktop |
| Number of Ports | 1 |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | RJ45, 2.5mm Plug |
| Power (Watts) - Per Port | 12.5 W |
| Type | Splitter |
| Voltage - Input [Max] | 56 VDC |
| Voltage - Input [Min] | 36 V |
| Voltage - Output | 5 V |
| Weight | 200.03 g |
| Weight | 0.441 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 32.74 | |
| 10 | $ 31.10 | |||
| 25 | $ 29.62 | |||
| 100 | $ 27.32 | |||
| 250 | $ 25.06 | |||
Description
General part information
POE14 Series
5V Power Over Ethernet (POE) 1 Port Splitter 10/100/1000 Mbps Data Rate
