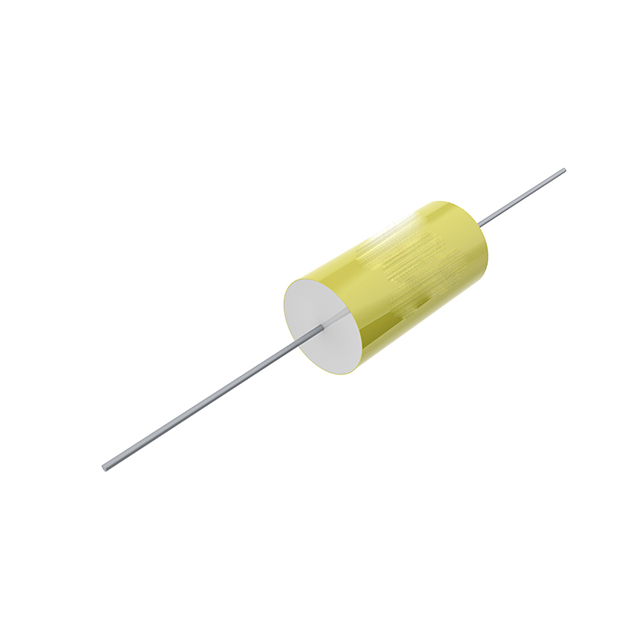

A50MQ3470AA60K

Active

KEMET

0,47 U0 VDCV ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

KEMET

0,47 U0 VDCV ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	A50MQ3470AA60K

Applications	Automotive
Capacitance	0.47 µF
Dielectric Material	Polyethylene Terephthalate (PET), Metallized, Polyester
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Ratings	AEC-Q200
Size / Dimension [diameter]	0.335 "
Size / Dimension [diameter]	8.5 mm
Size / Dimension [x]	28 mm
Size / Dimension [x]	1.102 in
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	200 V
Voltage Rating - DC	400 V

Part	Package / Case	Voltage Rating - DC	Termination	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Capacitance	Applications	Ratings	Dielectric Material	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Mounting Type
KEMET A50MQ3470AA60K	Axial	400 V	PC Pins	28 mm	0.335 "	1.102 in	8.5 mm	0.47 µF	Automotive	AEC-Q200	Metallized Polyester Polyethylene Terephthalate (PET)	200 V	105 ░C	-55 °C	10 %	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.47 µF Film Capacitor 200V 400V Polyester, Polyethylene Terephthalate (PET), Metallized Axial
