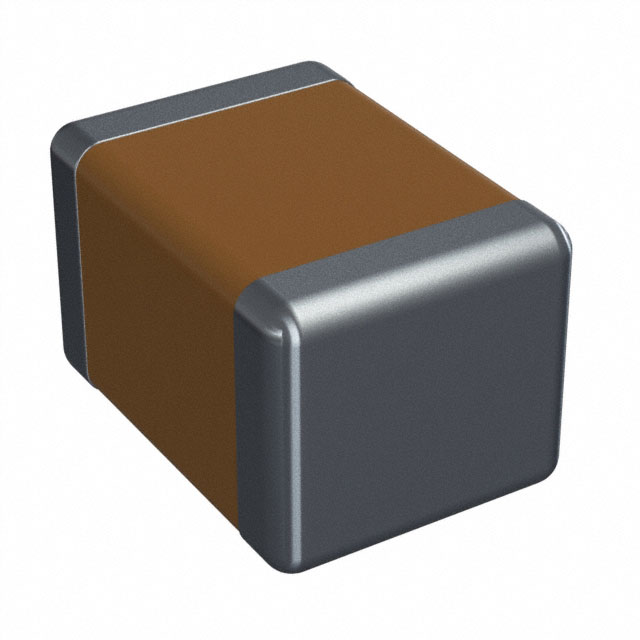

VG181216P390DP

Active

Kyocera AVX

VARISTOR 24.5V 1KA 1812

Search across all available documentation for this part.

Active

Kyocera AVX

VARISTOR 24.5V 1KA 1812

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Varistor Voltage (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Varistor Voltage (Min) [Min]	Package / Case	Number of Circuits	Maximum DC Volts [Max]	Maximum AC Volts [Max]	Energy	Varistor Voltage (Typ)	Capacitance @ Frequency	Current - Surge
Kyocera AVX VG181226P570DP	Surface Mount	38.5 V	125 °C	-55 °C	31.5 V	1812 (4532 Metric)	1	26 V	23 V	3 J	35 V	3000 pF	600 A
Kyocera AVX VG181256U111DP	Surface Mount	74.8 V	125 °C	-55 °C	61.2 V	1812 (4532 Metric)	1	56 V	40 V	4.8 J		800 pF	500 A
Kyocera AVX VG181216P390DP	Surface Mount	26.95 V	125 °C	-55 °C	22.05 V	1812 (4532 Metric)	1	16 V	11 V	2.9 J	24.5 V	7000 pF	1 kA
Kyocera AVX VG181218P440DP	Surface Mount	30.25 V	125 °C	-55 °C	24.75 V	1812 (4532 Metric)	1	18 V	14 V	2.9 J	27.5 V	5000 pF	800 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 0.53

General part information

24.5 V 1 kA Varistor 1 Circuit Surface Mount 1812 (4532 Metric)
