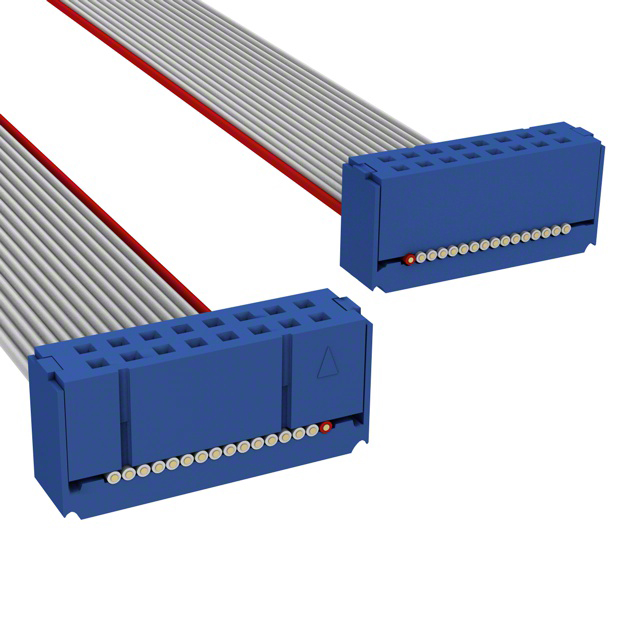

C3AAS-1606G

Active

CW Industries

IDC CABLE - CSC16S/AE16G/CSC16S

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CSC16S/AE16G/CSC16S

Technical Specifications

Parameters and characteristics for this part

Part	Length [x]	Length [x]	Shielding	Connector Type	Pitch - Cable	Pitch - Cable	Pitch - Connector	Pitch - Connector	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Positions	Cable Termination	Number of Rows	Number of Positions	Length	Length	Length	Color
CW Industries C3AAS-1418G	457.2 mm	1.5 ft	Unshielded	Socket to Socket	0.05 "	1.27 mm	0.1 in	2.54 mm	2.54 µm	100 µin	Tin	14	IDC	2
CW Industries C3AAS-1636G	914.4 mm	3 ft	Unshielded	Socket to Socket	0.05 "	1.27 mm	0.1 in	2.54 mm	2.54 µm	100 µin	Tin		IDC	2	16
CW Industries C3AAS-1406G			Unshielded	Socket to Socket	0.05 "	1.27 mm	0.1 in	2.54 mm	2.54 µm	100 µin	Tin	14	IDC	2		152.4 mm	6 "	0.5 '
CW Industries C3AAS-1036G	914.4 mm	3 ft	Unshielded	Socket to Socket	0.05 "	1.27 mm	0.1 in	2.54 mm	2.54 µm	100 µin	Tin	10	IDC	2
CW Industries C3AAS-1436G	914.4 mm	3 ft	Unshielded	Socket to Socket	0.05 "	1.27 mm	0.1 in	2.54 mm	2.54 µm	100 µin	Tin	14	IDC	2
CW Industries C3AAS-1436M	914.4 mm	3 ft	Unshielded	Socket to Socket	0.05 "	1.27 mm	0.1 in	2.54 mm	2.54 µm	100 µin	Tin	14	IDC	2					Multiple Ribbon
CW Industries C3AAS-1018M	457.2 mm	1.5 ft	Unshielded	Socket to Socket	0.05 "	1.27 mm	0.1 in	2.54 mm	2.54 µm	100 µin	Tin	10	IDC	2					Multiple Ribbon
CW Industries C3AAS-1606G			Unshielded	Socket to Socket	0.05 "	1.27 mm	0.1 in	2.54 mm	2.54 µm	100 µin	Tin		IDC	2	16	152.4 mm	6 "	0.5 '
CW Industries C3AAS-1636M	914.4 mm	3 ft	Unshielded	Socket to Socket	0.05 "	1.27 mm	0.1 in	2.54 mm	2.54 µm	100 µin	Tin		IDC	2	16				Multiple Ribbon
CW Industries C3AAS-1036M	914.4 mm	3 ft	Unshielded	Socket to Socket	0.05 "	1.27 mm	0.1 in	2.54 mm	2.54 µm	100 µin	Tin	10	IDC	2					Multiple Ribbon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")
