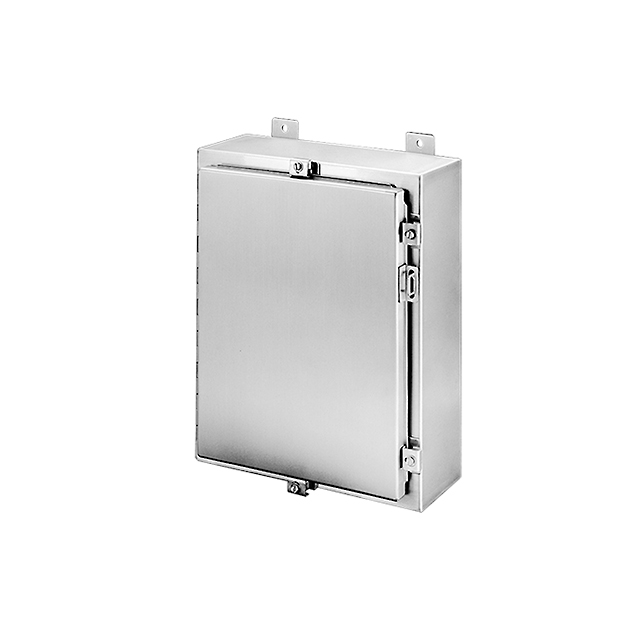

A16H1206SSLP

Active

Hoffman Enclosures, Inc.

JUNCTION BOX S STEEL 16"L X 12"W

Search across all available documentation for this part.

Active

Hoffman Enclosures, Inc.

JUNCTION BOX S STEEL 16"L X 12"W

Technical Specifications

Parameters and characteristics for this part

Specification	A16H1206SSLP

Area (L x W)	1239 cm²
Area (L x W)	192 in²
Color	Natural
Container Type	Junction Box
Design	Cover Included
Features	Sealing Gasket, Wall Mount
Height [z]	5.984 in
Height [z]	152 mm
Ratings	UL-508A, NEMA 12, NEMA 3R, NEMA 13, NEMA 3, NEMA 4X, IP66, NEMA 4
Size / Dimension [x]	406 mm
Size / Dimension [x]	15.984 in
Size / Dimension [y]	12.008 in
Size / Dimension [y]	305 mm
Thickness	14 Gauge
Weight	22 lbs
Weight	10 kg

Part	Height [z]	Height [z]	Thickness	Design	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Area (L x W)	Area (L x W)	Container Type	Weight	Weight	Features	Color	Ratings
Hoffman Enclosures, Inc. A16H1206SSLP	5.984 in	152 mm	14 Gauge	Cover Included	406 mm	15.984 in	12.008 in	305 mm	1239 cm²	192 in²	Junction Box	22 lbs	10 kg	Sealing Gasket Wall Mount	Natural	IP66 NEMA 12 NEMA 13 NEMA 3 NEMA 3R NEMA 4 NEMA 4X UL-508A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Junction Box Metal, Stainless Steel Natural Cover Included 15.984" L x 12.008" W (406.00mm x 305.00mm) X 5.984" (152.00mm)
