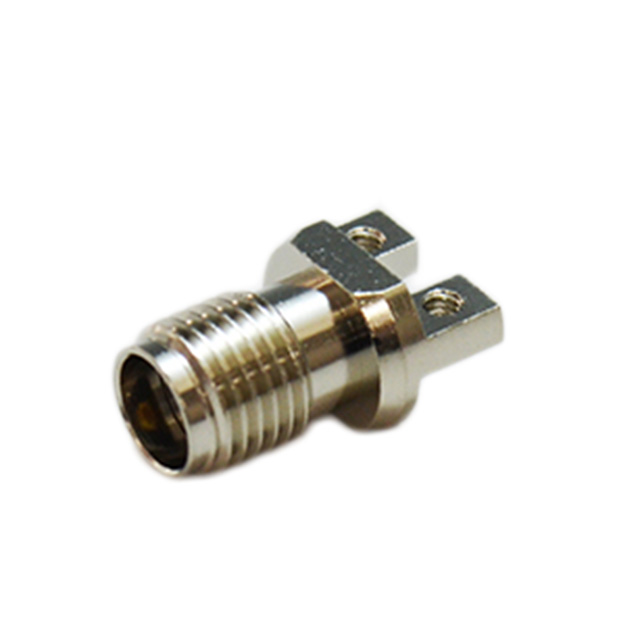

HK-LR-SR2
ActiveHirose Electric USA, Inc.
CONN 2.92MM RCP STR 50OHM EDGEMT
Deep-Dive with AI
Search across all available documentation for this part.
HK-LR-SR2
ActiveHirose Electric USA, Inc.
CONN 2.92MM RCP STR 50OHM EDGEMT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HK-LR-SR2 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | 2.92 mm |
| Connector Type | Receptacle, Female Socket |
| Contact Termination | Compression |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 40 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Board Edge, End Launch |
| Number of Ports | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 55.50 | |
| 10 | $ 43.01 | |||
| 25 | $ 39.05 | |||
| 50 | $ 36.37 | |||
| 100 | $ 33.95 | |||
| 250 | $ 31.10 | |||
Description
General part information
HK-LR Series
2.92mm Connector Receptacle, Female Socket 50 Ohms Board Edge, End Launch Compression
