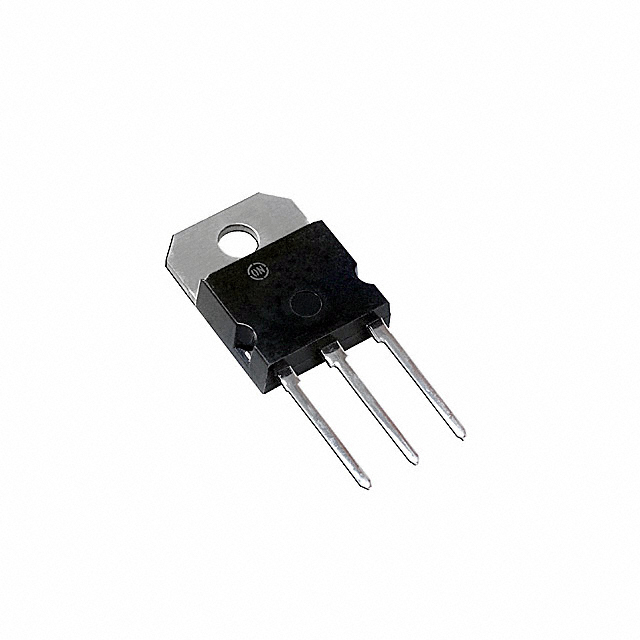

TIP35C

Obsolete

ON Semiconductor

25 A, 100 V NPN BIPOLAR POWER TRANSISTOR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Package Drawing-340D-02-SOT-93 (T0-218) 4-LEAD +1

TIP35C

Obsolete

ON Semiconductor

25 A, 100 V NPN BIPOLAR POWER TRANSISTOR

Deep-Dive with AI

DocumentsDatasheet Package Drawing-340D-02-SOT-93 (T0-218) 4-LEAD +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TIP35C

Current - Collector (Ic) (Max) [Max]	25 A
Current - Collector Cutoff (Max) [Max]	1 mA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	15
Frequency - Transition	3 MHz
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 °C
Package / Case	TO-218-3
Supplier Device Package	SOT-93
Transistor Type	NPN
Vce Saturation (Max) @ Ib, Ic	4 V
Voltage - Collector Emitter Breakdown (Max) [Max]	100 V

TIP35C Series

25 A, 100 V NPN Bipolar Power Transistor

Part	Supplier Device Package	Package / Case	Current - Collector (Ic) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Mounting Type	Transistor Type	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Current - Collector Cutoff (Max) [Max]	Frequency - Transition	Operating Temperature [Max]	Operating Temperature [Min]	Vce Saturation (Max) @ Ib, Ic
ON Semiconductor TIP35C	SOT-93	TO-218-3	25 A	100 V	Through Hole	NPN	15	1 mA	3 MHz	150 °C	-65 °C	4 V
ON Semiconductor TIP35CG	TO-247-3	TO-247-3	25 A	100 V	Through Hole	NPN	15	1 mA	3 MHz	150 °C	-65 °C	4 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.11
		30	$ 1.70
		120	$ 1.40
		510	$ 1.18
		1020	$ 1.00
		2010	$ 0.95
		5010	$ 0.92
		10020	$ 0.89

Description

General part information

TIP35C Series

The Bipolar Power Transistor is designed for general purpose power amplifier and switching applications. The TIP35A, TIP35B, TIP35C (NPN); TIP36A, TIP36B, TIP36C (PNP) are complementary devices.
