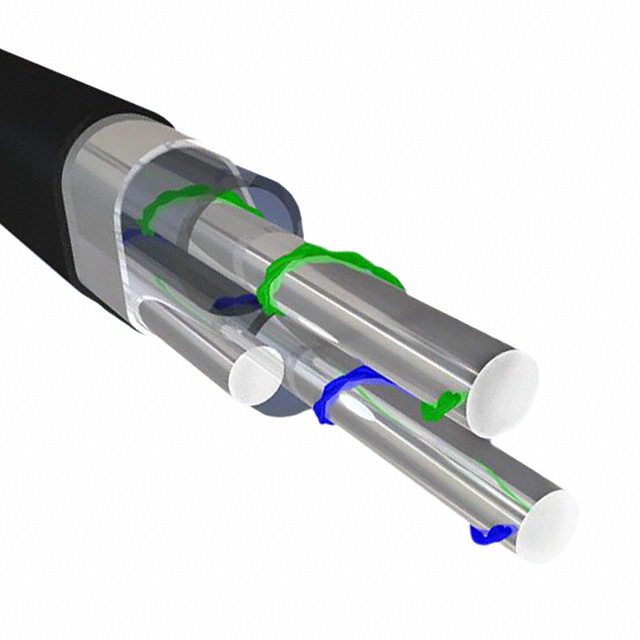

1000680065

Obsolete

Molex - Temp Flex

CABLE TWINAXIAL 32AWG 25'

Search across all available documentation for this part.

Obsolete

Molex - Temp Flex

CABLE TWINAXIAL 32AWG 25'

Technical Specifications

Parameters and characteristics for this part

Specification	1000680065

Cable Type	Twinaxial
Conductor Material	Copper, Silver Coated
Conductor Strand	Solid (2)
Dielectric Diameter [diameter]	0.023 in
Dielectric Diameter [diameter]	0.58 mm
Dielectric Material	Fluorinated Ethylene Propylene (FEP), Fluorinated Ethylene-Propylene (FEP®)
Impedance	100 Ohms
Jacket (Insulation) Diameter [diameter]	0.072 in
Jacket (Insulation) Diameter [diameter]	1.83 mm
Jacket (Insulation) Material	Polyurethane (PU)
Jacket Color	Black
Length	25 ft, 200 '
Length	7.62 m, 60.96 m
Length [x]	1 ft, 10 ft
Length [x]	300 mm, 3.05 m
Shield Coverage	90 %, 100 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Wire Gauge	32 AWG

Part	Shield Coverage	Conductor Strand	Length [x]	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Dielectric Material	Shield Material	Length	Length	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Jacket Color	Wire Gauge	Conductor Material	Impedance	Shield Type	Jacket (Insulation) Material	Cable Type
Molex - Temp Flex 1000680065	90 % 100 %	Solid (2)	1 ft 10 ft	3.05 m 300 mm	0.072 in	1.83 mm	Fluorinated Ethylene Propylene (FEP) Fluorinated Ethylene-Propylene (FEP®)	Aluminum Copper Tinned	25 ft 200 '	7.62 m 60.96 m	0.023 in	0.58 mm	Black	32 AWG	Copper Silver Coated	100 Ohms	Braid Foil	Polyurethane (PU)	Twinaxial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Twinaxial Cable 32 AWG 25.0' (7.62m) 100 Ohms
